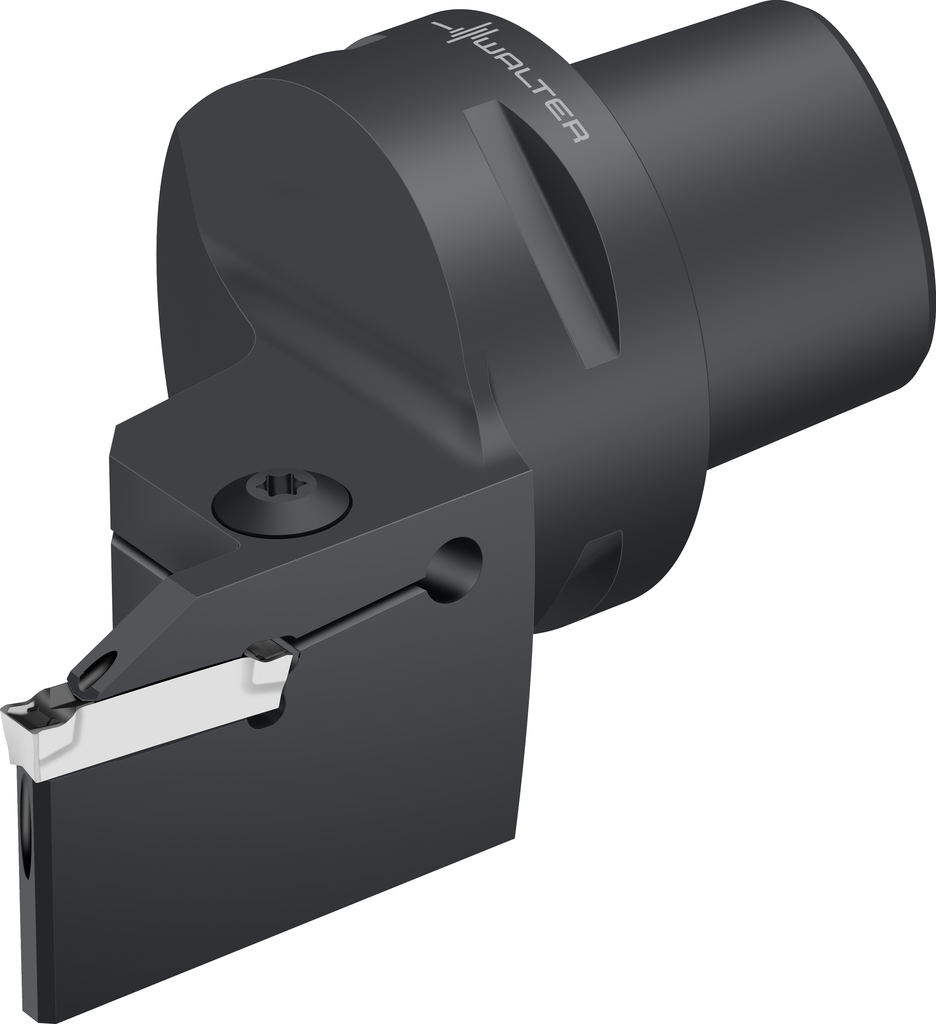

Groove turning – Radial grooving G1011-C...-P
• Walter CaptoTM
• Screw clamping
• metric
• Walter CaptoTM ISO 26623
• Left
• GX24
• s=3mm
• Tmax=21mm
Groove turning – Radial grooving G1011-C...-P G1011-C3L-3T21GX24-P

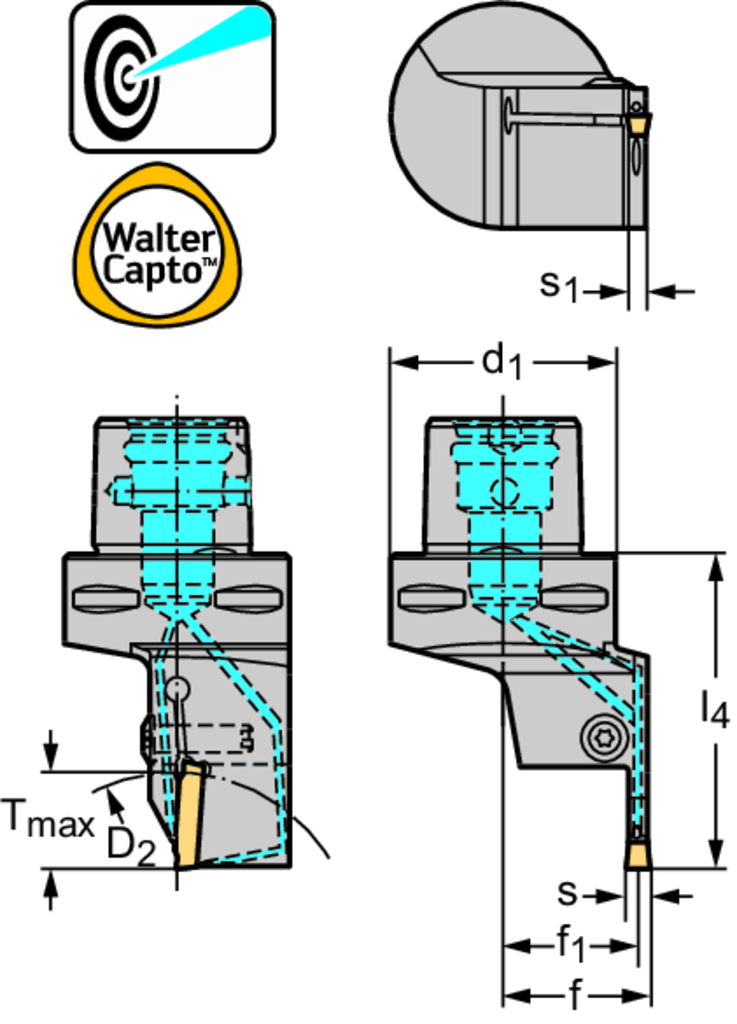

| Описание | Символ | Стойност |
| Insert width | s | 3 mm |
| Maximum cutting depth | T max | 21 mm |
| Work piece parting diameter maximum | D 2 | 65 mm |
| Connection size code | d 1 | C3 |
| Functional width | f 1 | 20,5 mm |
| Maximum projection length | l 4 | 60 mm |
| Body width | s 1 | 2,4 mm |
