Groove turning – Radial grooving G2612-C...
• Walter CaptoTM
• Self-clamping system
• metric
• Walter CaptoTM ISO 26623
• Right
• SX00
• s=3mm
• Tmax=45mm
Groove turning – Radial grooving G2612-C... G2612-C6R-3T45SX

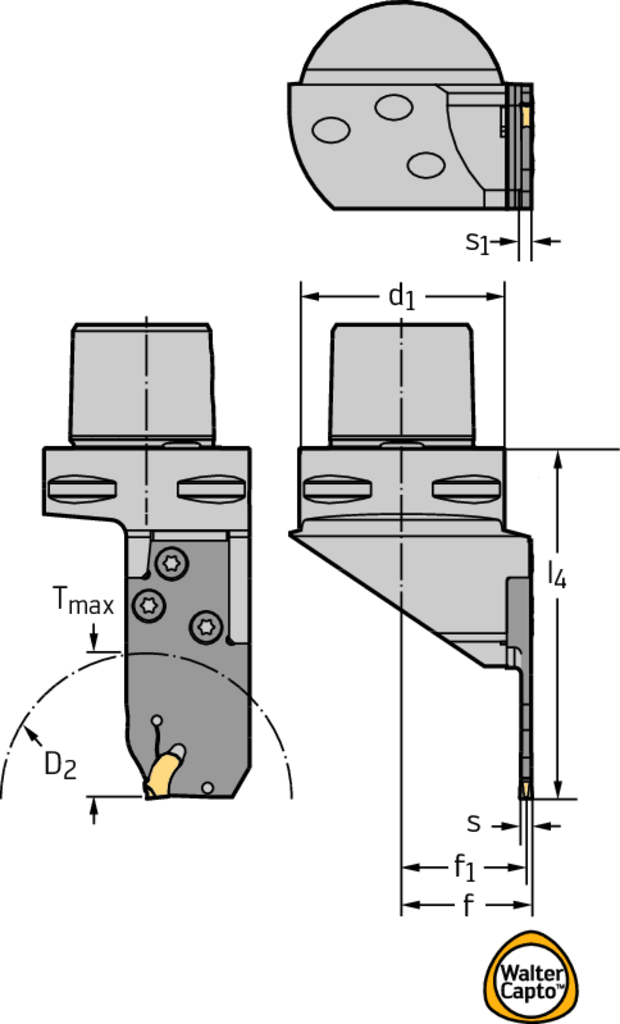

| Описание | Символ | Стойност |
| Insert width | s | 3 - 3 mm |
| Maximum cutting depth | T max | 45 mm |
| Work piece parting diameter maximum | D 2 | 100 mm |
| Connection size code | d 1 | C6 |
| Functional width | f 1 | 36,2 mm |
| Maximum projection length | l 4 | 101,5 mm |
| Body width | s 1 | 2,4 mm |
| Module size | E32 |
