Groove turning holders – Radial grooving G3011-C...-P
• Walter CaptoTM
• Screw clamping
• metric
• Walter CaptoTM ISO 26623
• Left
• MX22
• s=4mm
• Tmax=6mm

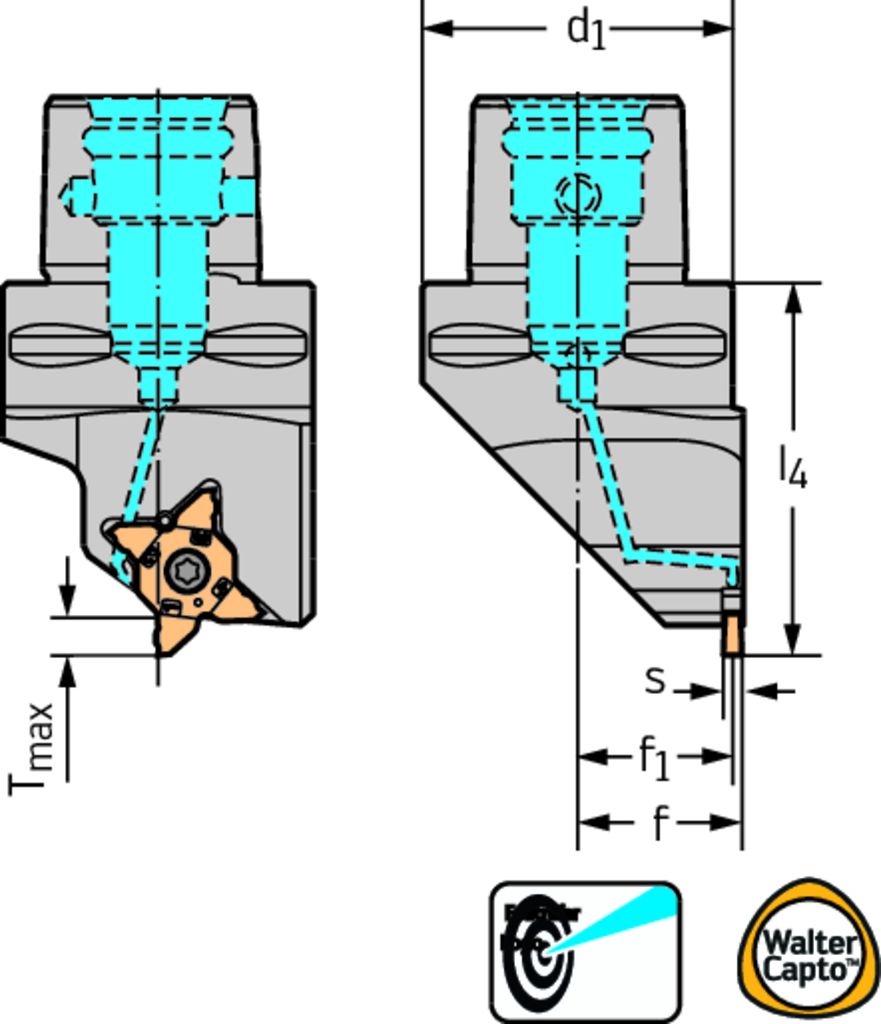

Groove turning holders – Radial grooving G3011-C...-P G3011-C6L-MX22-4-P
| Описание | Символ | Стойност |
| Insert width | s | 4 - 5,65 mm |
| Maximum cutting depth | T max | 6 mm |
| Shank diameter | d 1 | C6 |
| Functional width | f 1 | 32 mm |
| Maximum projection length | l 4 | 65 mm |
Други размери
