Turning tools – Rigid clamping C...-DDJN
• Walter Turn
• metric
• Walter CaptoTM ISO 26623
• κ=93°
• Left
• C6
• rhombic insert
• DN .. 1506 ..

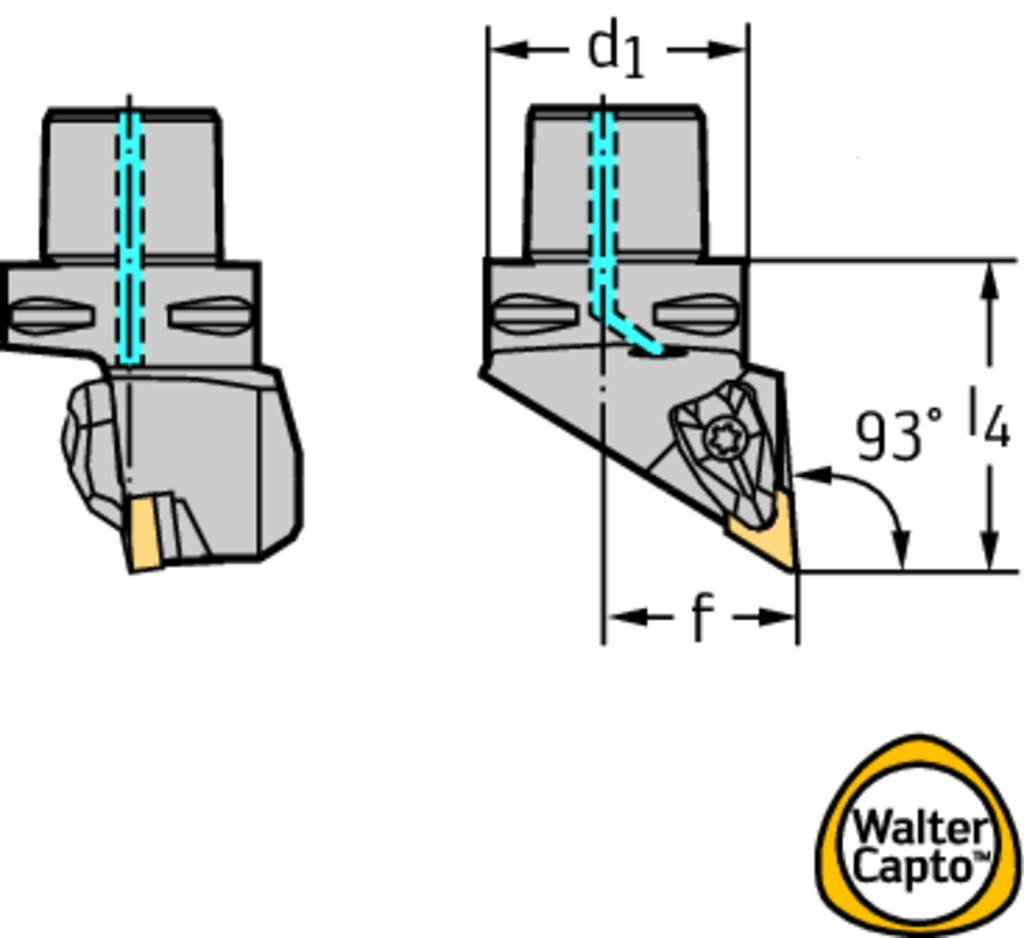

Turning tools – Rigid clamping C... C6-DDJNL-45065-15
| Описание | Символ | Стойност |
| Connection size code | D 1 | C6 |
| Functional width | f | 45 mm |
| Functional length | l 4 | 65 mm |
| Minimum diameter | D min | 110 mm |
| Minimum hole diameter | D min2 | 190 mm |
| Orthogonal rake angle | γ | -6 Deg |
| Inclination angle | λ s | -7 Deg |
