Groove turning – 90° radial grooving G2622-C...
• Walter CaptoTM
• Self-clamping system
• metric
• Walter CaptoTM ISO 26623
• Left
• SX00
• s=4mm
• Tmax=35mm

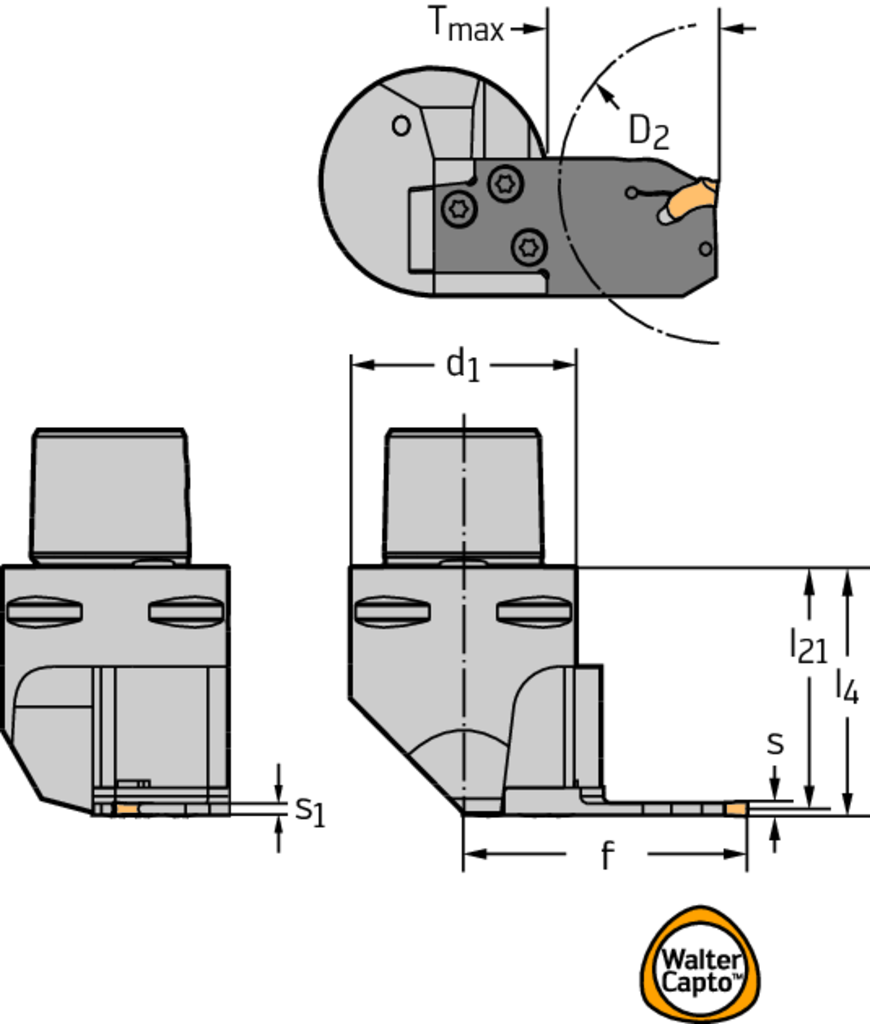

Groove turning – 90° radial grooving G2622-C... G2622-C4L-4T35SX
| Описание | Символ | Стойност |
| Insert width | s | 4 - 4 mm |
| Maximum cutting depth | T max | 35 mm |
| Work piece parting diameter maximum | D 2 | 90 mm |
| Connection size code | d 1 | C4 |
| Functional width | f | 63 mm |
| Functional length | l 21 | 52,7 mm |
| Body width | s 1 | 3,4 mm |
| Module size | E25 |
