Boring bar – Screw clamping C...-SCLC
• Walter Turn
• metric
• Walter CaptoTM ISO 26623
• Right
• C4
• 16mm
• rhombic insert
• CC .. 09T3 ..
Boring bar – Screw clamping C... C4-SCLCR-11070-09

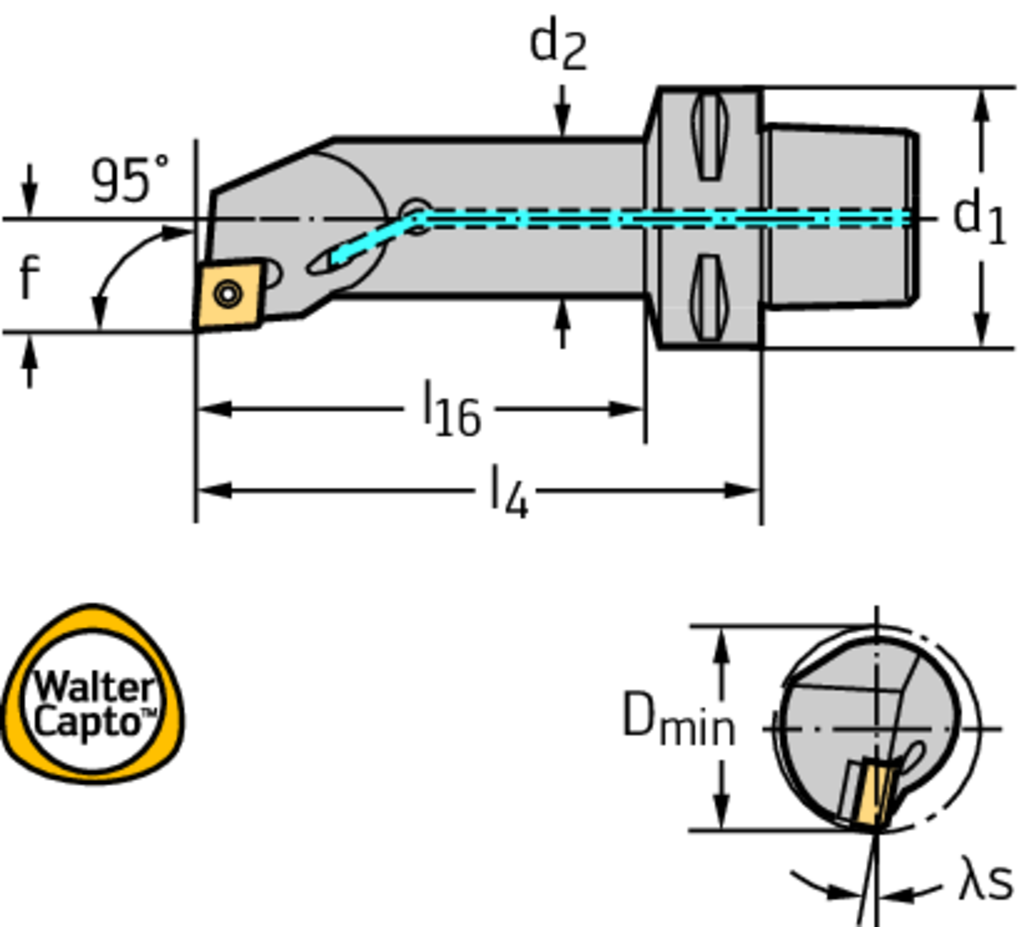

| Описание | Символ | Стойност |
| Connection size code | d 1 | C4 |
| Minimum hole diameter | D min | 20 mm |
| Body diameter | d 2 | 16 mm |
| Functional width | f | 11 mm |
| Functional length | l 4 | 70 mm |
| Useable length | l 16 | 47 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | -8,397 Deg |
