Boring bar – Screw clamping C...-SVQB
• Walter Turn
• metric
• Walter CaptoTM ISO 26623
• Left
• C3
• 16mm
• rhombic insert
• VB .. 1103 ..
Boring bar – Screw clamping C... C3-SVQBL-13070-11

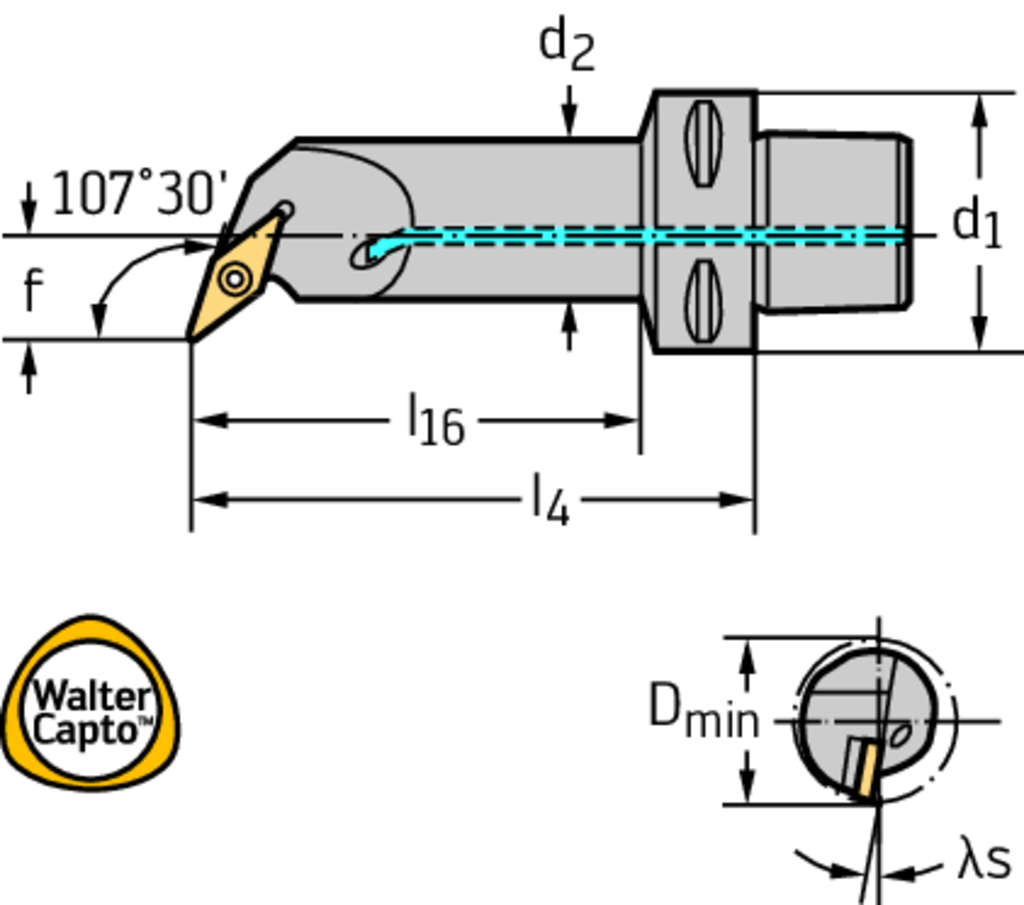

| Описание | Символ | Стойност |
| Connection size code | d 1 | C3 |
| Minimum hole diameter | D min | 22 mm |
| Body diameter | d 2 | 16 mm |
| Functional width | f | 13 mm |
| Functional length | l 4 | 70 mm |
| Useable length | l 16 | 53 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | -6,907 Deg |
