Boring bar – Screw clamping C...-SDUC
• Walter Turn
• metric
• Walter CaptoTM ISO 26623
• Right
• C3
• 25mm
• rhombic insert
• DC .. 11T3 ..
Boring bar – Screw clamping C... C3-SDUCR-17090-11

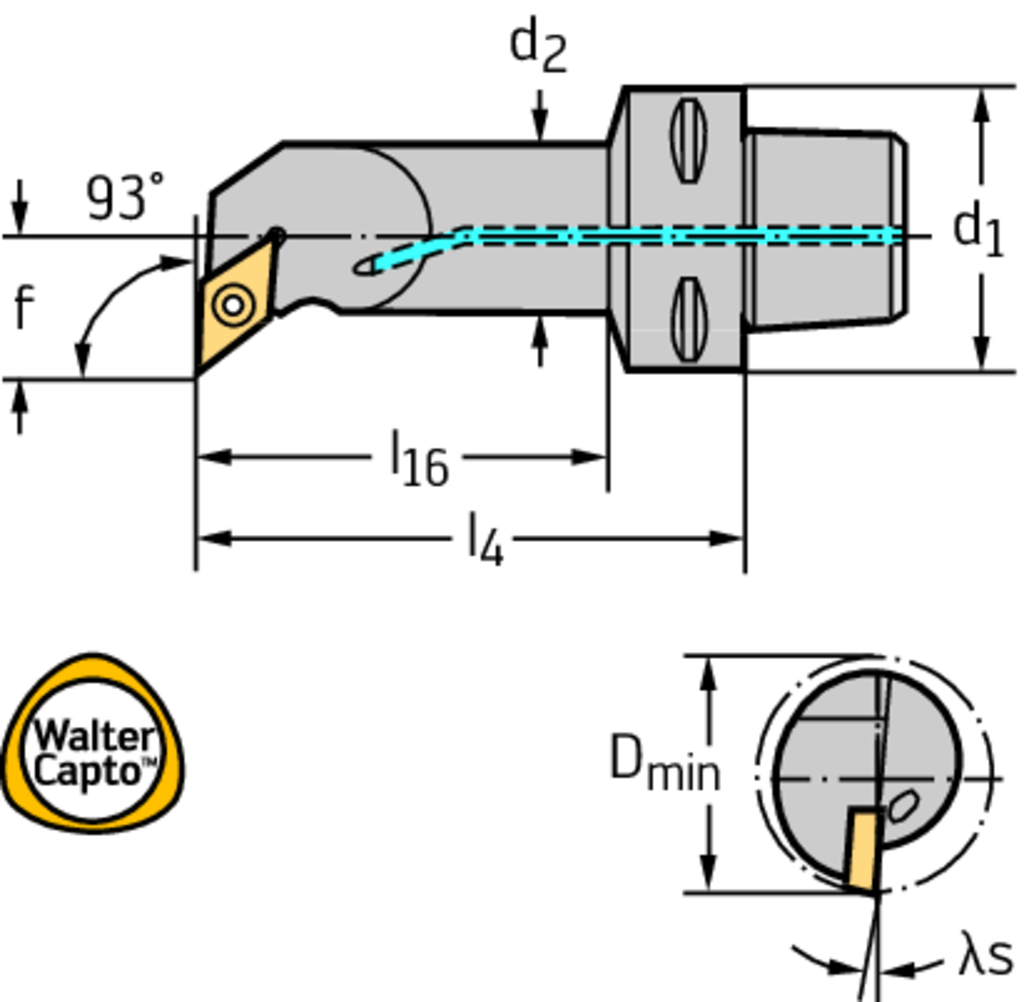

| Описание | Символ | Стойност |
| Connection size code | d 1 | C3 |
| Minimum hole diameter | D min | 32 mm |
| Body diameter | d 2 | 25 mm |
| Functional width | f | 17 mm |
| Functional length | l 4 | 90 mm |
| Useable length | l 16 | 73 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | -3,424 Deg |
