Boring bar – Screw clamping C...-STFC
• Walter Turn
• metric
• Walter CaptoTM ISO 26623
• Left
• C5
• 20mm
• triangular insert
• TC .. 1102 ..
Boring bar – Screw clamping C... C5-STFCL-13080-11

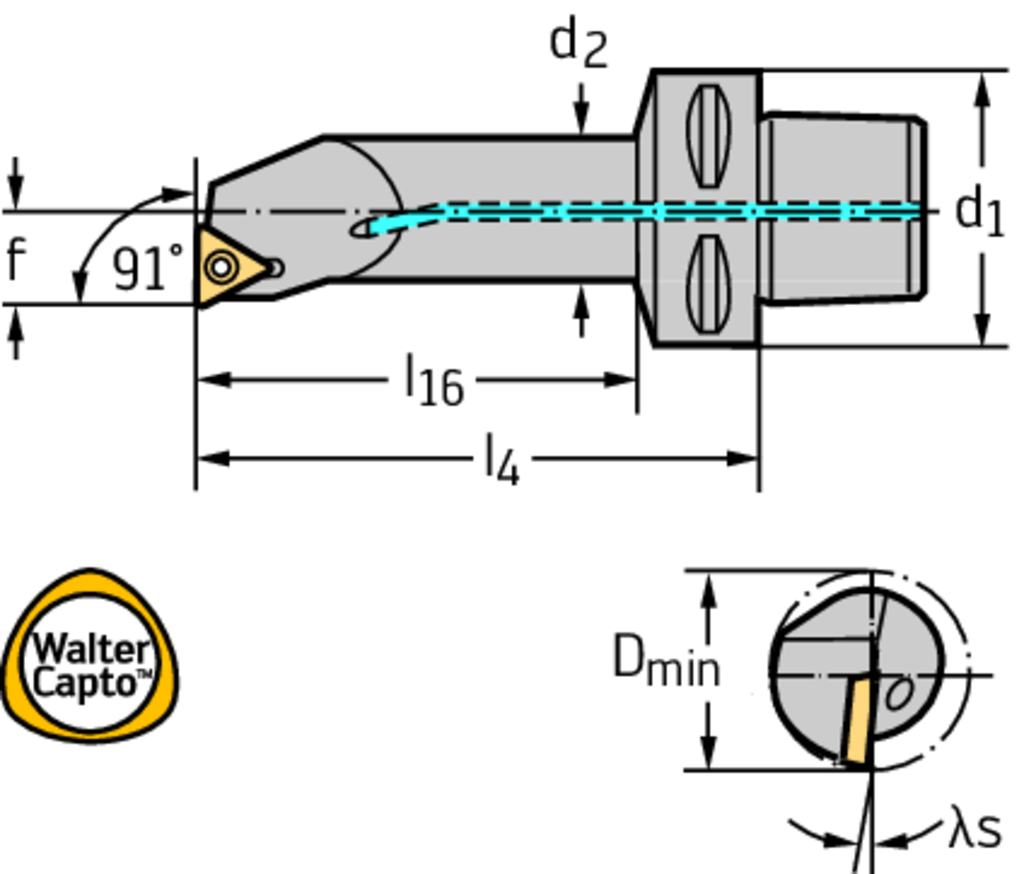

| Описание | Символ | Стойност |
| Connection size code | d 1 | C5 |
| Minimum hole diameter | D min | 25 mm |
| Body diameter | d 2 | 20 mm |
| Functional width | f | 13 mm |
| Functional length | l 4 | 80 mm |
| Useable length | l 16 | 56 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | -10,296 Deg |
Други размери
