Tangential rhombic CNMU ...-D57T
• clearance angle major=0°
• WSP45G
• Tigertec Gold
• Corner radius=0,8mm
Tangential rhombic CNMU120608-D57T WSP45G

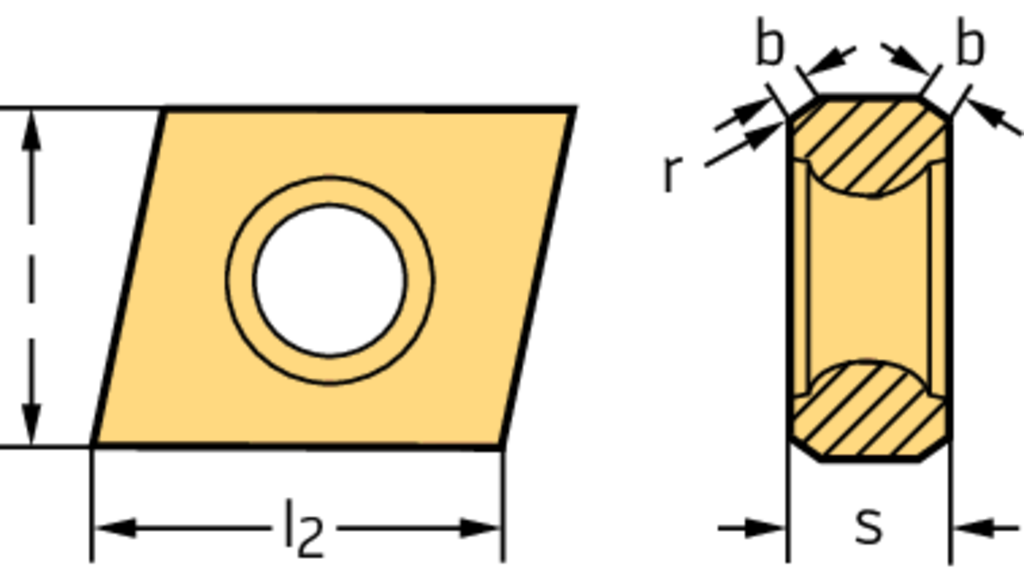

| Описание | Символ | Стойност |
| Indexable insert tolerance class | Tolerance class | M |
| Number of cutting edges | Number of cutting edges | 2 |
| Indexable insert width | l 2 | 13 mm |
| Cutting edge length | l | 12 mm |
| Insert thickness | s | 6,5 mm |
| Corner radius | r | 0,8 mm |
