Finishing inserts LNHX ...-L55T
• clearance angle major=0°
• WAK15
• Tigertec
• Corner radius=0,8mm
• wiper edge length=2,2mm
Finishing inserts LNHX130608R-L55T WAK15

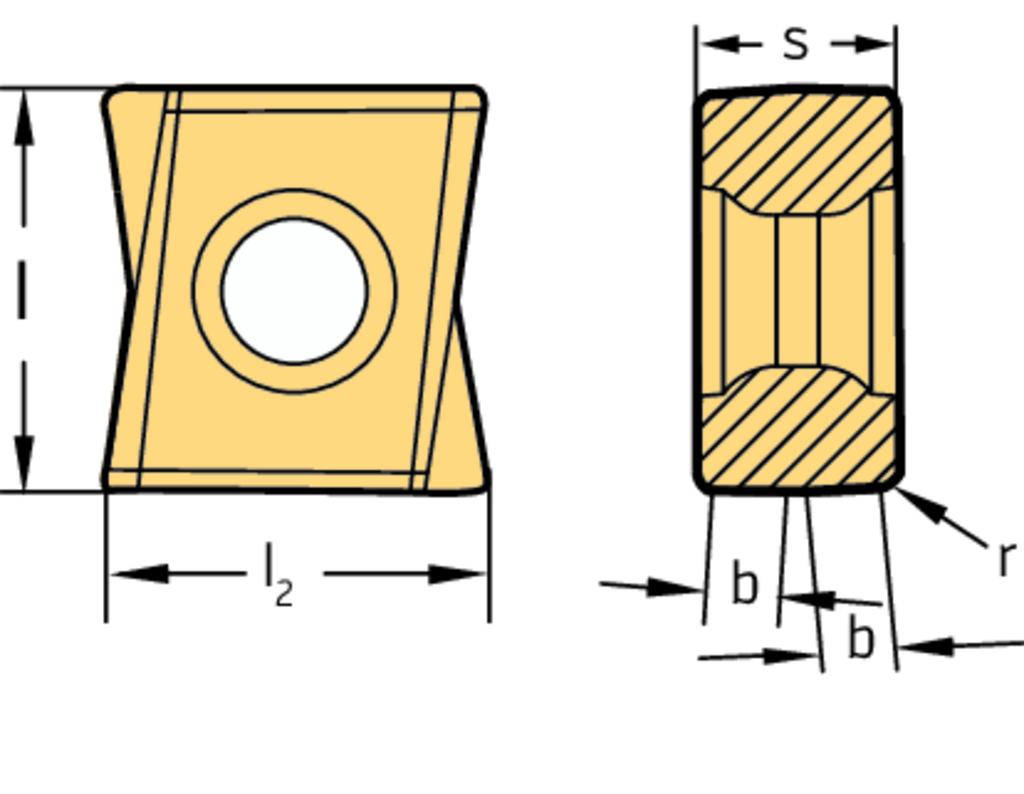

| Описание | Символ | Стойност |
| Indexable insert tolerance class | Tolerance class | H |
| Number of cutting edges | Number of cutting edges | 4 |
| Indexable insert width | l 2 | 12 mm |
| Cutting edge length | l | 13 mm |
| Insert thickness | s | 6,8 mm |
| Corner radius | r | 0,8 mm |
| Wiper cutting edge length | b | 2,2 mm |
Други размери
