Positive rhombic ADGT ...-D67
• clearance angle major=15°
• WSM35S
• Tigertec Silver
• Corner radius=0,8mm
• wiper edge length=1,2mm
Positive rhombic ADGT10T3PER-D67 WSM35S

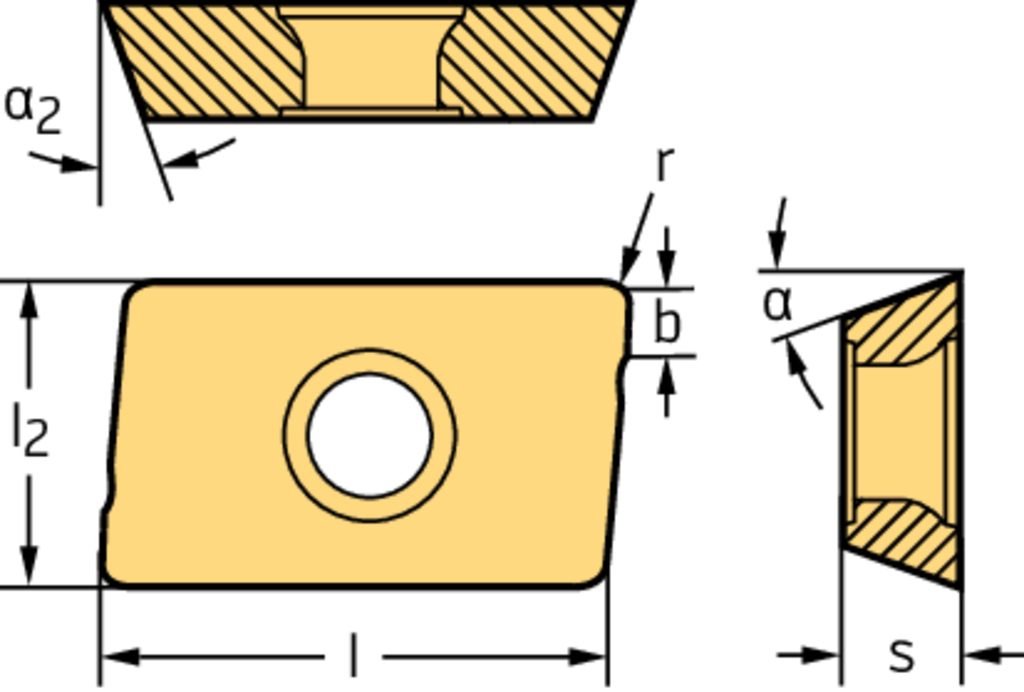

| Описание | Символ | Стойност |
| Indexable insert tolerance class | Tolerance class | G |
| Number of cutting edges | Number of cutting edges | 2 |
| Indexable insert width | l 2 | 7,25 mm |
| Cutting edge length | l | 11,3 mm |
| Insert thickness | s | 3,8 mm |
| Clearance angle major | α | 15 Deg |
| Minor clearance angle | α 2 | 15 Deg |
| Corner radius | r | 0,8 mm |
| Wiper cutting edge length | b | 1,2 mm |
