Shank tool – Lever clamping PTGN
• Walter Turn
• metric
• Square shank
• κ=91°
• Right
• 40x40mm
• triangular insert
• TN .. 2706 ..
Shank tool – Lever clamping PTGNR4040S27

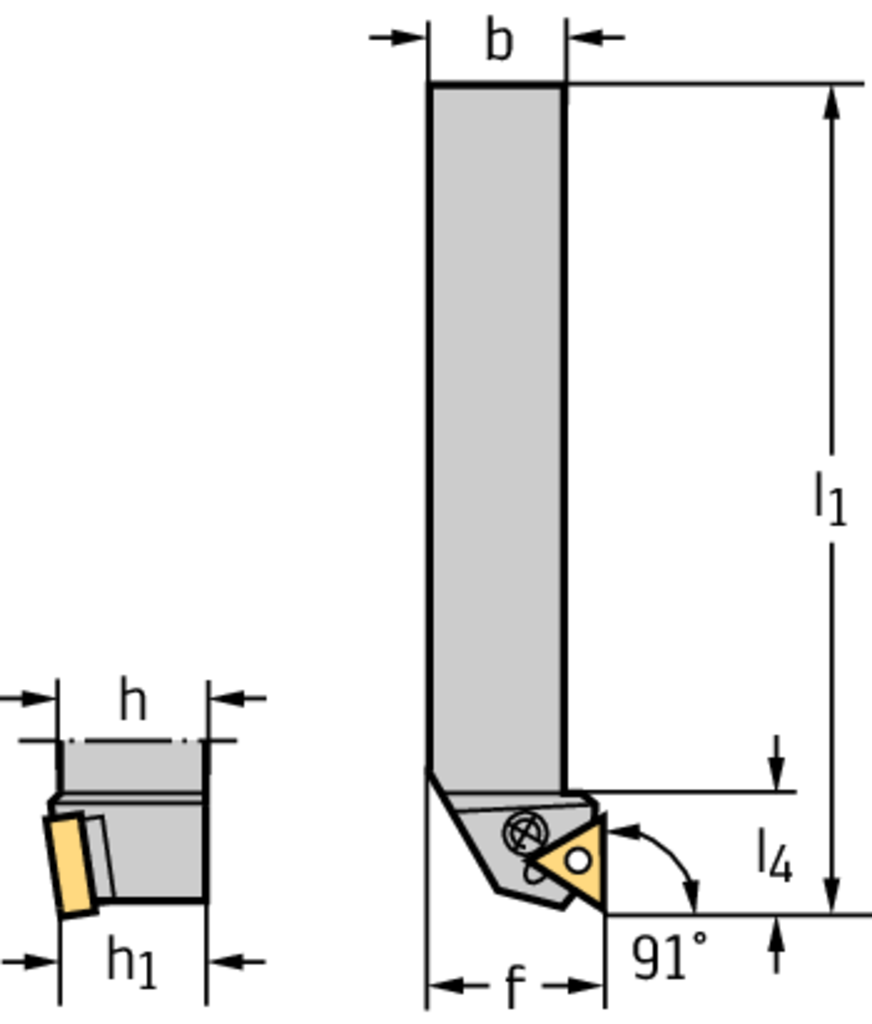

| Описание | Символ | Стойност |
| Shank height | h = h 1 | 40 mm |
| Shank width | b | 40 mm |
| Functional width | f | 50 mm |
| Functional length | l 1 | 250 mm |
| Maximum projection length | l 4 | 34 mm |
| Orthogonal rake angle | γ | -6 Deg |
| Inclination angle | λ s | -6 Deg |
