Shank tool – Lever clamping PSSN
• Walter Turn
• metric
• Square shank
• κ=45°
• Right
• 25x25mm
• square insert
• SN .. 1506 ..

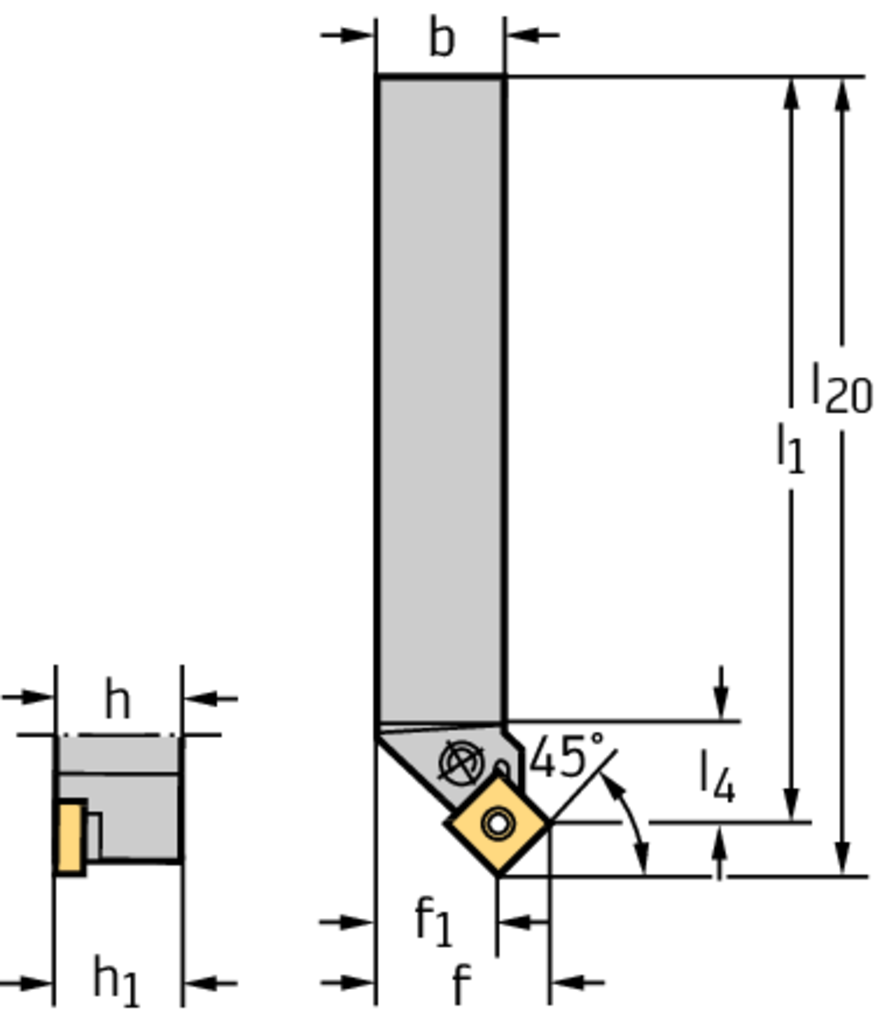

Shank tool – Lever clamping PSSNR2525M15
| Описание | Символ | Стойност |
| Shank height | h = h 1 | 25 mm |
| Shank width | b | 25 mm |
| Functional width | f 1 | 21,76 mm |
| Functional length | l 1 | 150 mm |
| Maximum projection length | l 4 | 25,3 mm |
| Overall length | l 20 | 160,2 mm |
| Orthogonal rake angle | γ | -8 Deg |
| Inclination angle | λ s | 0 Deg |
Други размери
