Shank tool – Lever clamping PCLN
• Walter Turn
• metric
• Square shank
• κ=95°
• Right
• 32x25mm
• rhombic insert
• CN .. 1204 ..
Shank tool – Lever clamping PCLNR3225P12

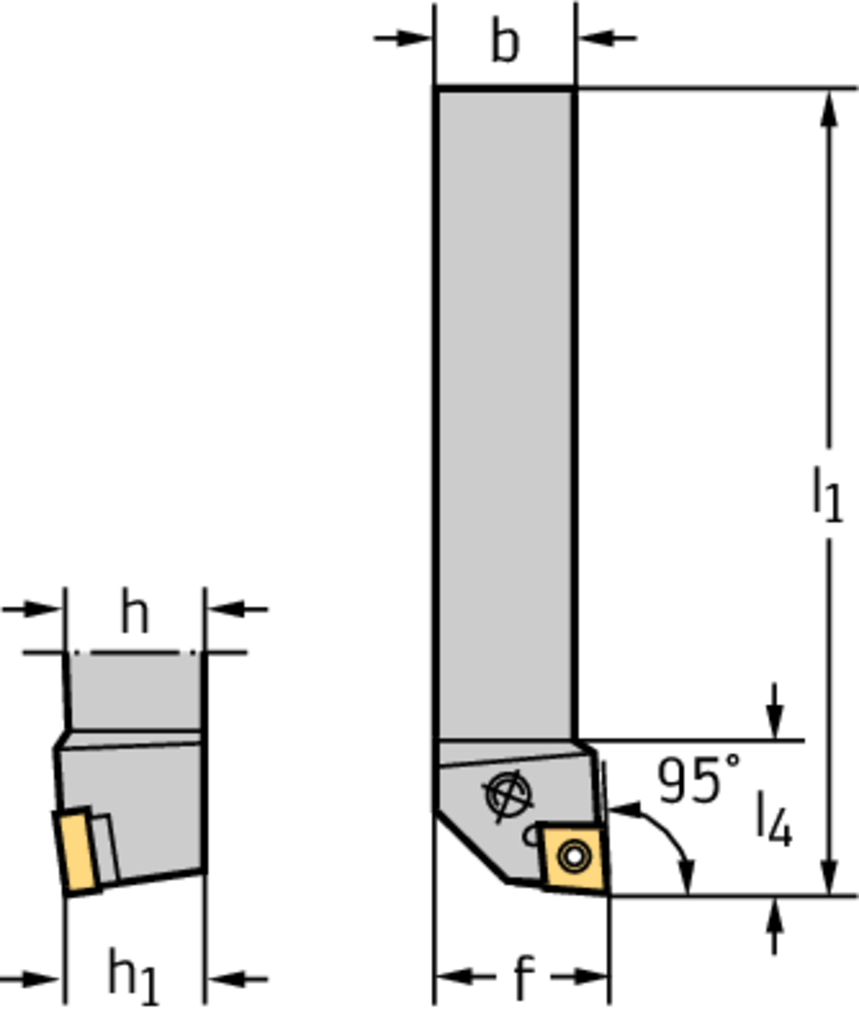

| Описание | Символ | Стойност |
| Shank height | h = h 1 | 32 mm |
| Shank width | b | 25 mm |
| Functional width | f | 32 mm |
| Functional length | l 1 | 170 mm |
| Maximum projection length | l 4 | 27,2 mm |
| Orthogonal rake angle | γ | -6 Deg |
| Inclination angle | λ s | -6 Deg |
Други размери
