Shank tool – Lever clamping PCSN
• Walter Turn
• metric
• Square shank
• κ=45°
• Left
• 25x25mm
• rhombic insert
• CN .. 1204 ..

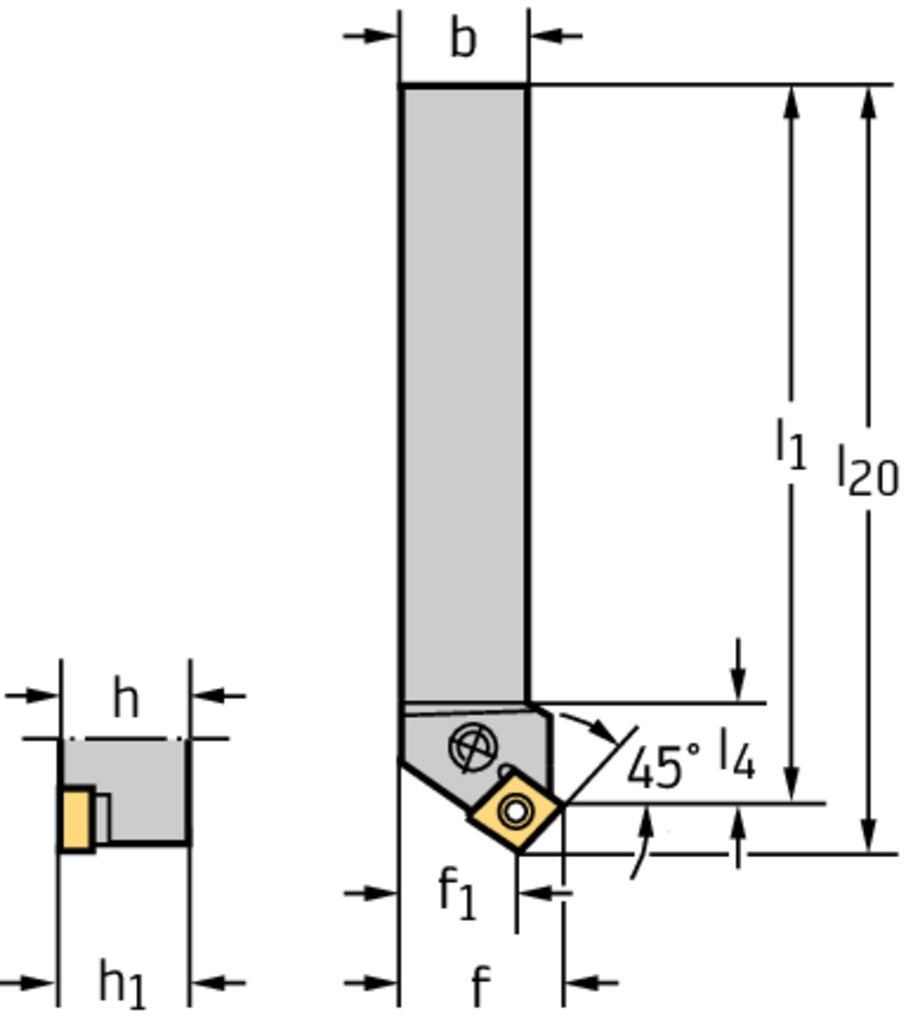

Shank tool – Lever clamping PCSNL2525M12
| Описание | Символ | Стойност |
| Shank height | h = h 1 | 25 mm |
| Shank width | b | 25 mm |
| Functional width | f 1 | 23,9 mm |
| Functional length | l 1 | 150 mm |
| Maximum projection length | l 4 | 19,7 mm |
| Overall length | l 20 | 160 mm |
| Orthogonal rake angle | γ | -8 Deg |
| Inclination angle | λ s | -8 Deg |
