Turning tools – Lever clamping C...-PDJN
• Walter Turn
• metric
• Walter CaptoTM ISO 26623
• κ=93°
• Right
• C4
• rhombic insert
• DN .. 1506 ..

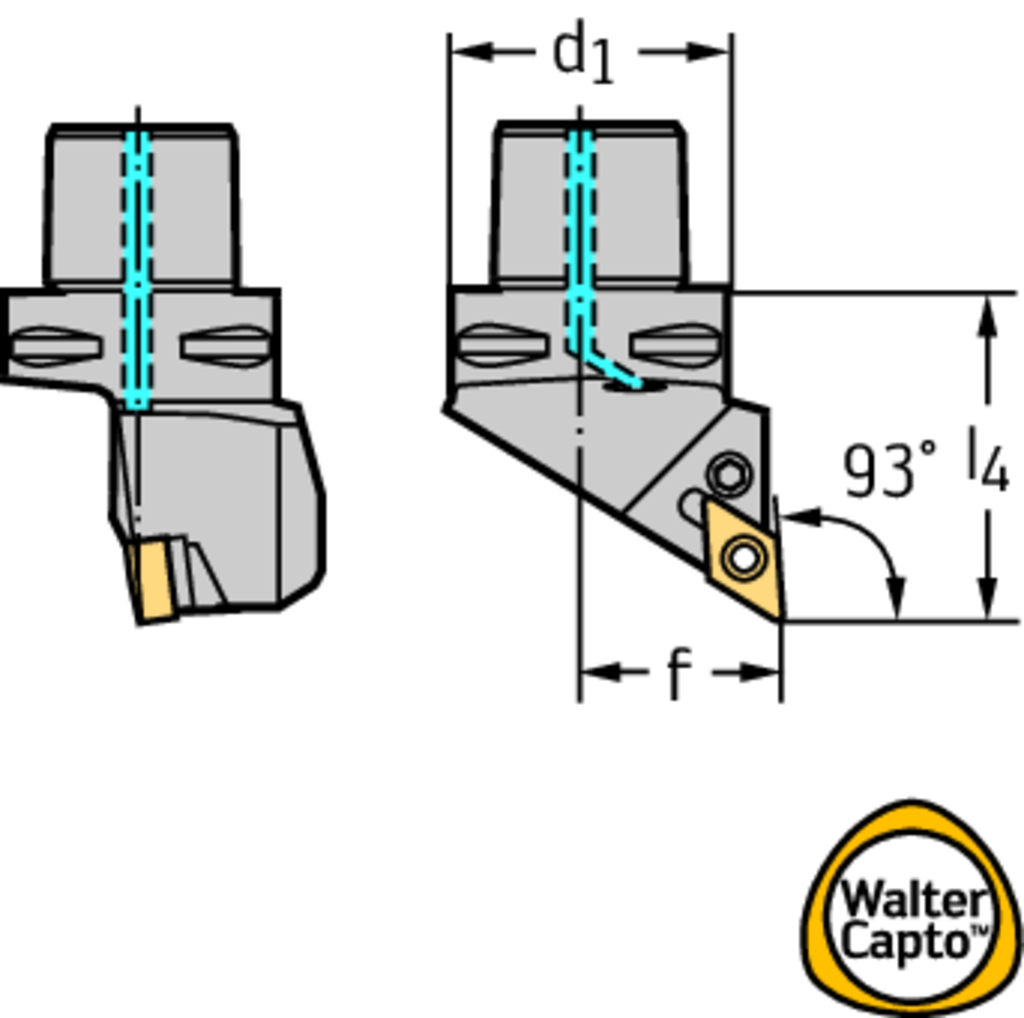

Turning tools – Lever clamping C... C4-PDJNR-27050-15
| Описание | Символ | Стойност |
| Connection size code | D 1 | C4 |
| Functional width | f | 27 mm |
| Functional length | l 4 | 50 mm |
| Minimum diameter | D min | 80 mm |
| Minimum hole diameter | D min2 | 140 mm |
| Orthogonal rake angle | γ | -6 Deg |
| Inclination angle | λ s | -7 Deg |
