Turning tools – Lever clamping C...-PCLN
• Walter Turn
• metric
• Walter CaptoTM ISO 26623
• κ=95°
• Right
• C3
• rhombic insert
• CN .. 1204 ..

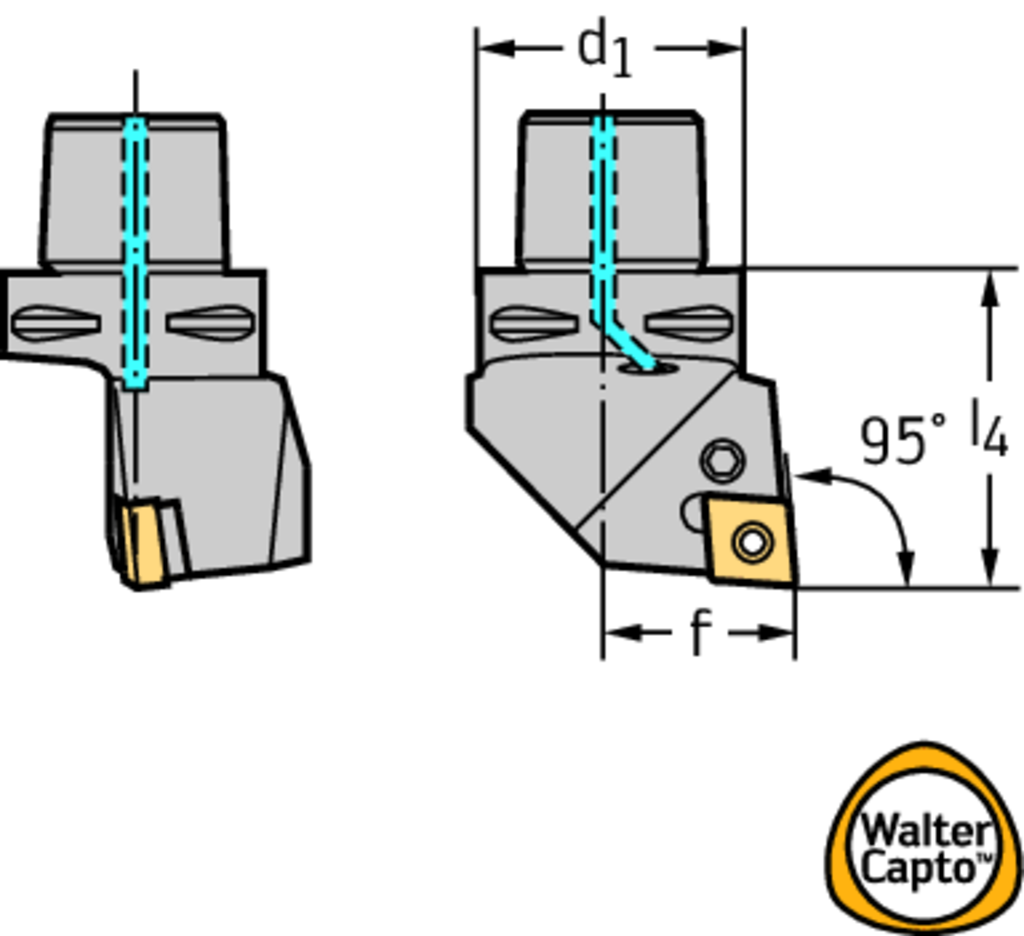

Turning tools – Lever clamping C... C3-PCLNR-22040-12
| Описание | Символ | Стойност |
| Connection size code | D 1 | C3 |
| Functional width | f | 22 mm |
| Functional length | l 4 | 40 mm |
| Minimum diameter | D min | 60 mm |
| Minimum hole diameter | D min2 | 116 mm |
| Orthogonal rake angle | γ | -6 Deg |
| Inclination angle | λ s | -6 Deg |
Други размери
