Shank tool – Screw clamping SRGC
• Walter Turn
• inch
• Square shank
• κ=0°
• Left
• 25x25mm
• round insert
• RC .. 1204 ..
Shank tool – Screw clamping SRGCL164C

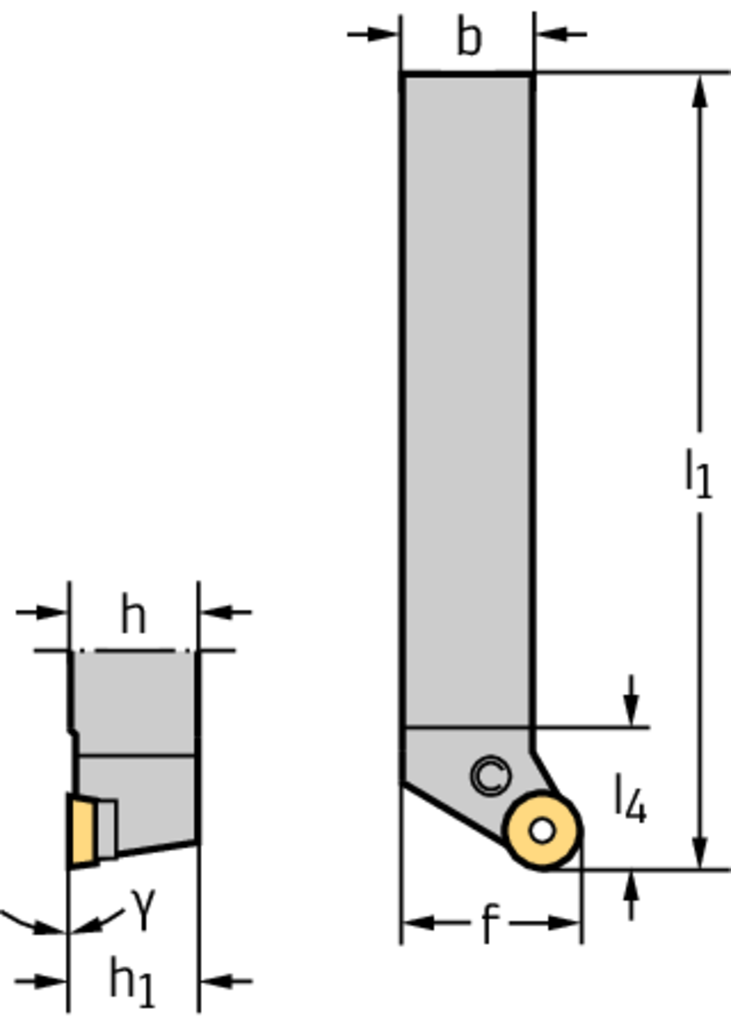

| Описание | Символ | Стойност |
| Shank height | h = h 1 | 1 inch |
| Shank width | b | 1 inch |
| Functional width | f | 1,25 inch |
| Functional length | l 1 | 5 inch |
| Maximum projection length | l 4 | 1,332 inch |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | 0 Deg |
Други размери
