Shank tool – Screw clamping SDJC
• Walter Turn
• metric
• Square shank
• κ=93°
• Right
• 12x12mm
• rhombic insert
• DC .. 0702 ..
Shank tool – Screw clamping SDJCR1212F07

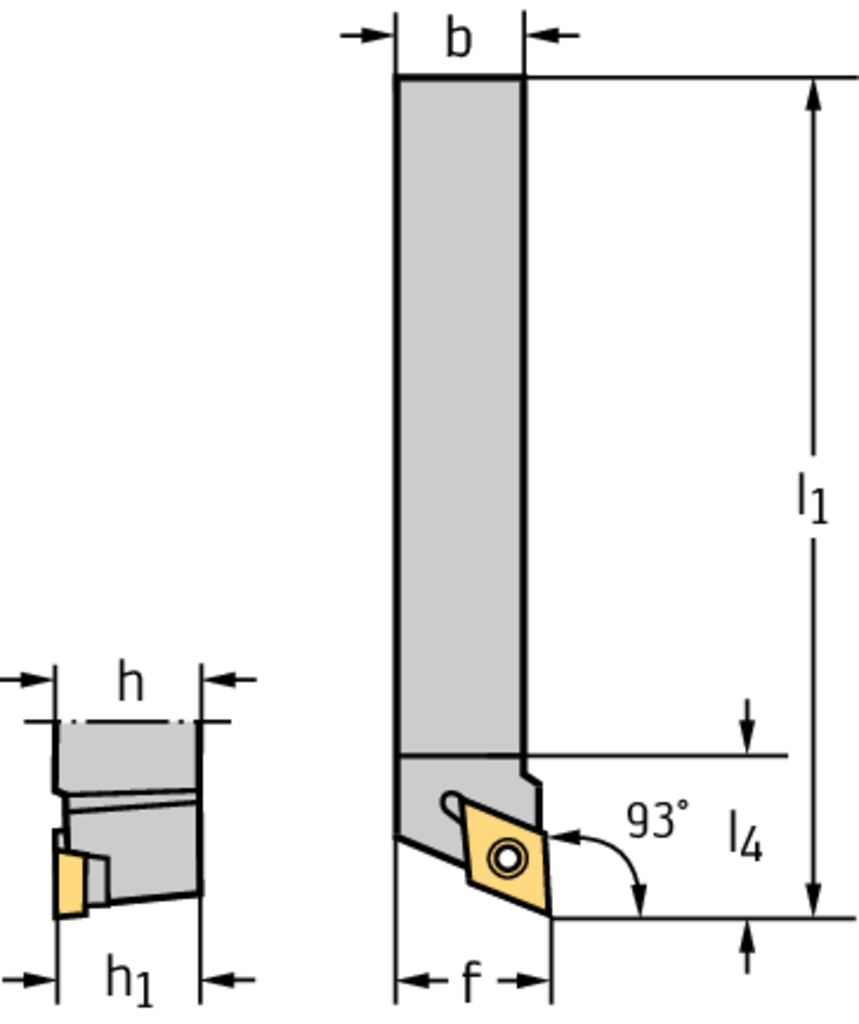

| Описание | Символ | Стойност |
| Shank height | h = h 1 | 12 mm |
| Shank width | b | 12 mm |
| Functional width | f | 16 mm |
| Functional length | l 1 | 80 mm |
| Maximum projection length | l 4 | 15,5 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | 0 Deg |
