Shank tool – Screw clamping SVHB
• Walter Turn
• metric
• Square shank
• κ=107,5°
• Right
• 25x25mm
• rhombic insert
• VB .. 1604 ..
Shank tool – Screw clamping SVHBR2525M16

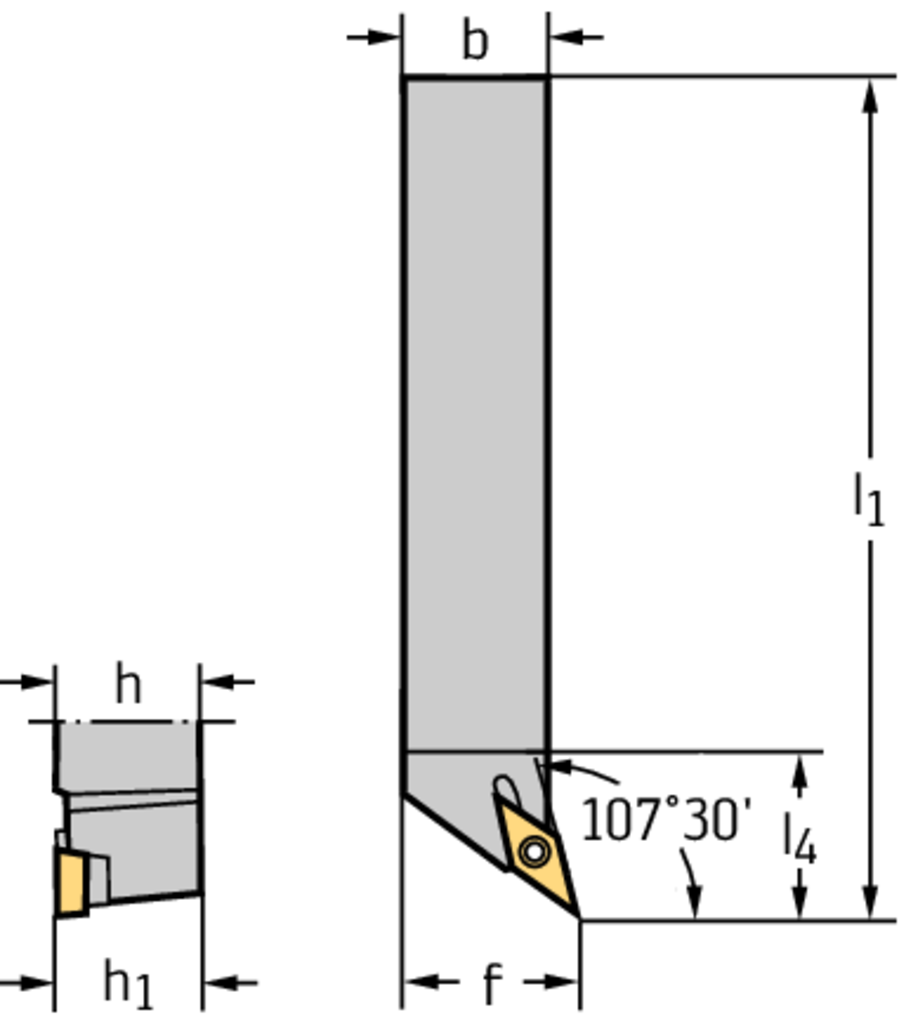

| Описание | Символ | Стойност |
| Shank height | h = h 1 | 25 mm |
| Shank width | b | 25 mm |
| Functional width | f | 32 mm |
| Functional length | l 1 | 150 mm |
| Maximum projection length | l 4 | 27,6 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | 0 Deg |
