Shank tool – Screw clamping SCLC
• Walter Turn
• metric
• Square shank
• κ=95°
• Left
• 25x25mm
• rhombic insert
• CC .. 09T3 ..
Shank tool – Screw clamping SCLCL2525M09

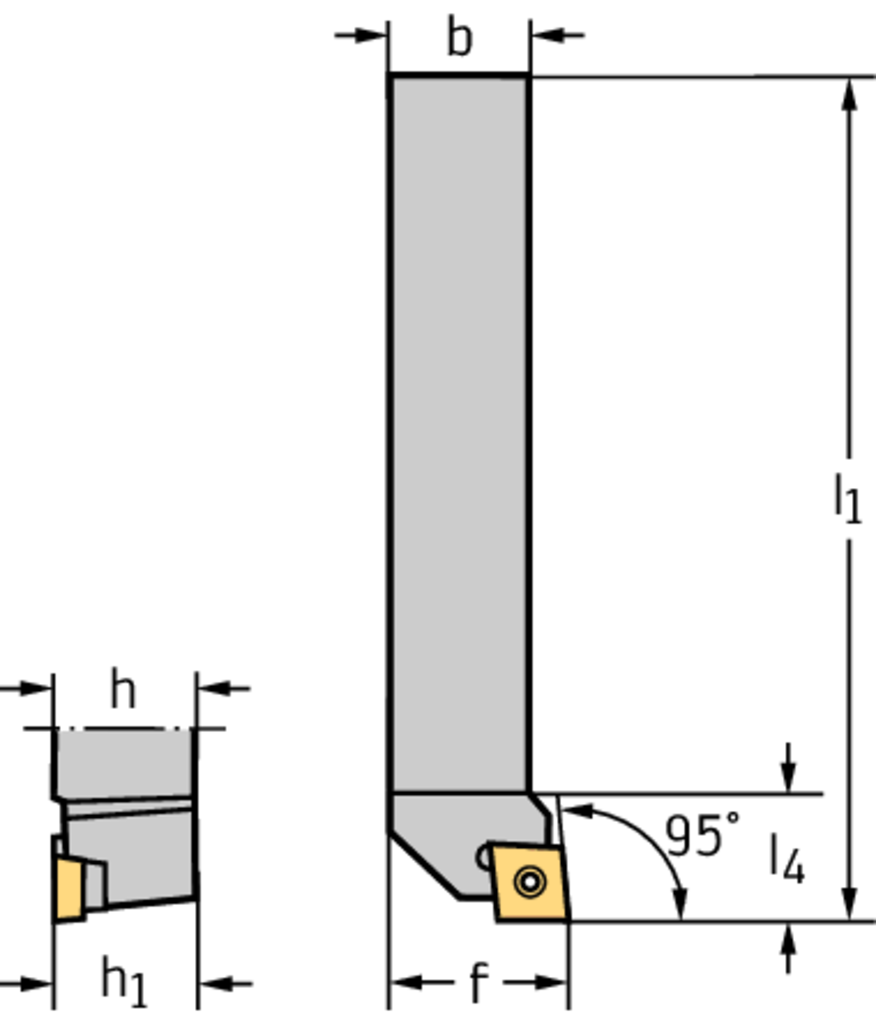

| Описание | Символ | Стойност |
| Shank height | h = h 1 | 25 mm |
| Shank width | b | 25 mm |
| Functional width | f | 32 mm |
| Functional length | l 1 | 150 mm |
| Maximum projection length | l 4 | 17 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | 0 Deg |
Други размери
