Shank tool – Screw clamping SWLC
• Walter Turn
• metric
• Square shank
• κ=95°
• Left
• 16x16mm
• trigon insert
• WC .. 0402 ..

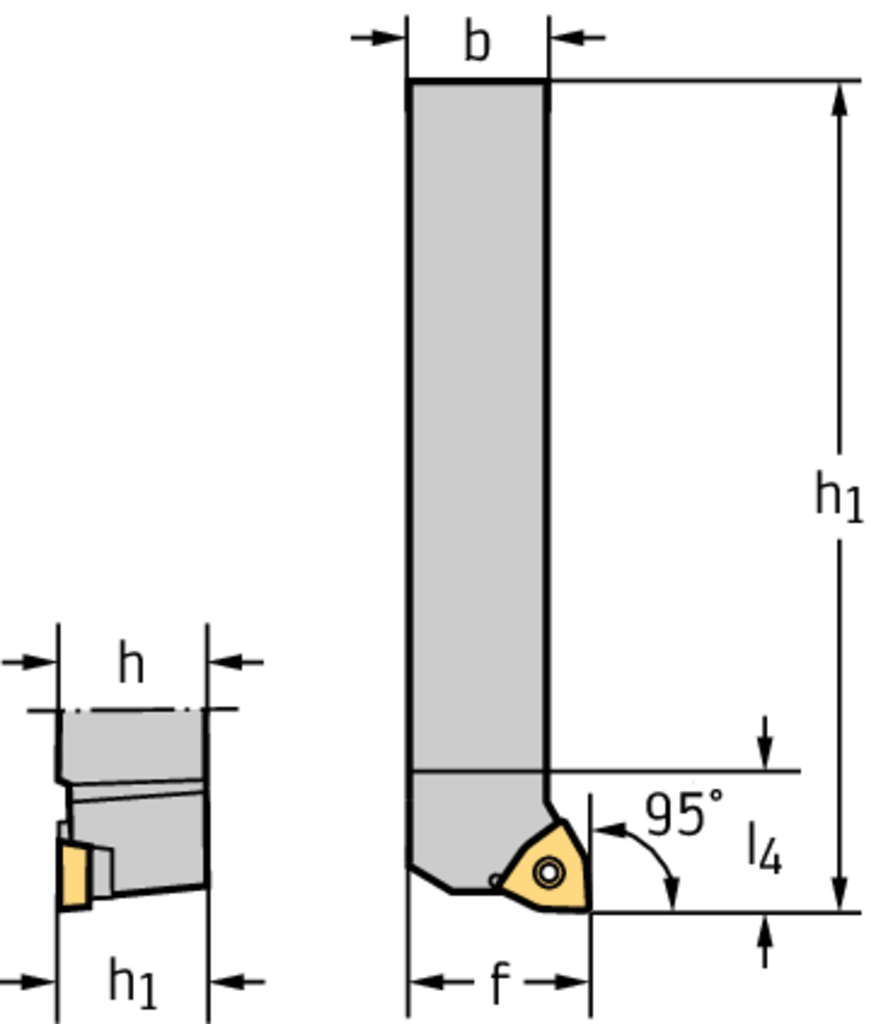

Shank tool – Screw clamping SWLCL1616H04
| Описание | Символ | Стойност |
| Shank height | h = h 1 | 16 mm |
| Shank width | b | 16 mm |
| Functional width | f | 20 mm |
| Functional length | l 1 | 100 mm |
| Maximum projection length | l 4 | 11 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | 0 Deg |
