Round insert milling cutters M5468
• Parallel bore DIN 138 transverse keyway
• metric
• RO .. 1204 ..
• Dc=28mm
• Z=4
Round insert milling cutters M5468-040-B16-04-06

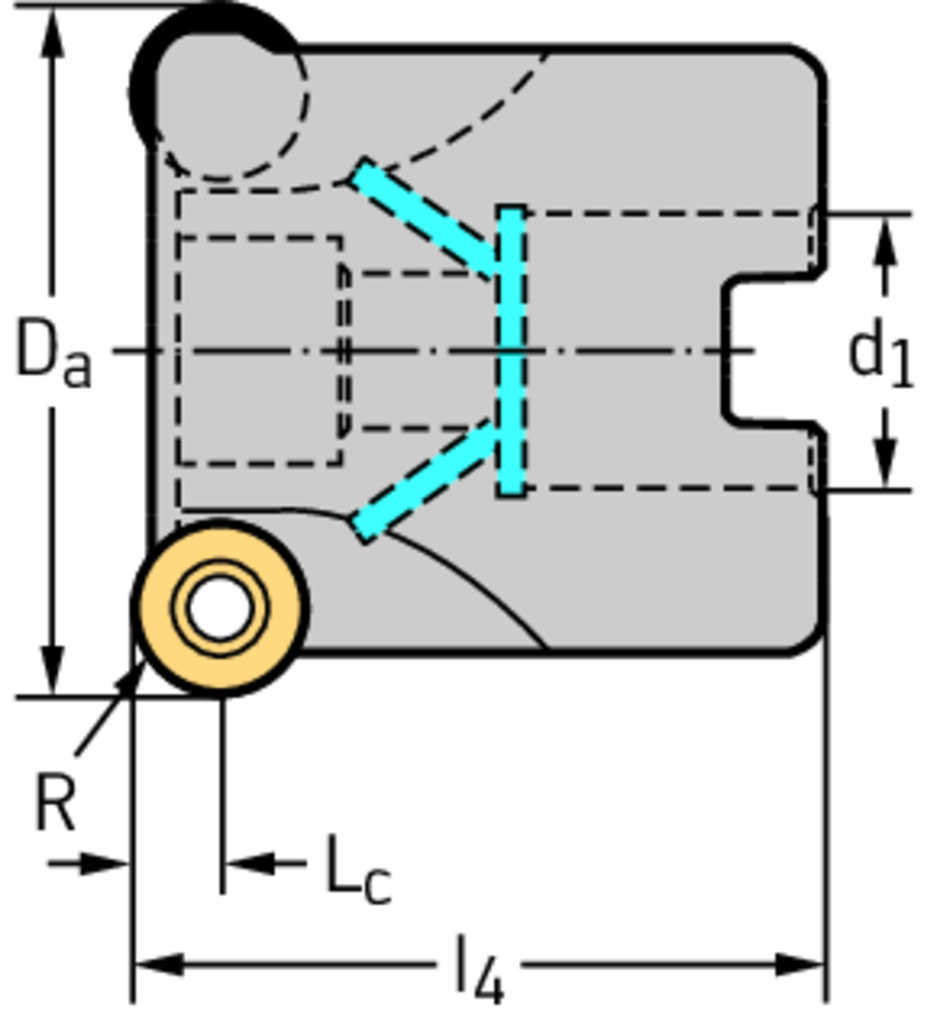

| Описание | Символ | Стойност |
| Corner radius | r | 6 mm |
| Maximum cutting diameter | D a | 40 mm |
| Shank diameter | d 1 | 16 mm |
| Functional length | l 4 | 40 mm |
| Cutting edge length | L c | 6 mm |
| Number of teeth | Z | 4 |
| weight of item | 0,13 kg | |
| Number of indexable inserts | No. of indexable inserts | 4 |
