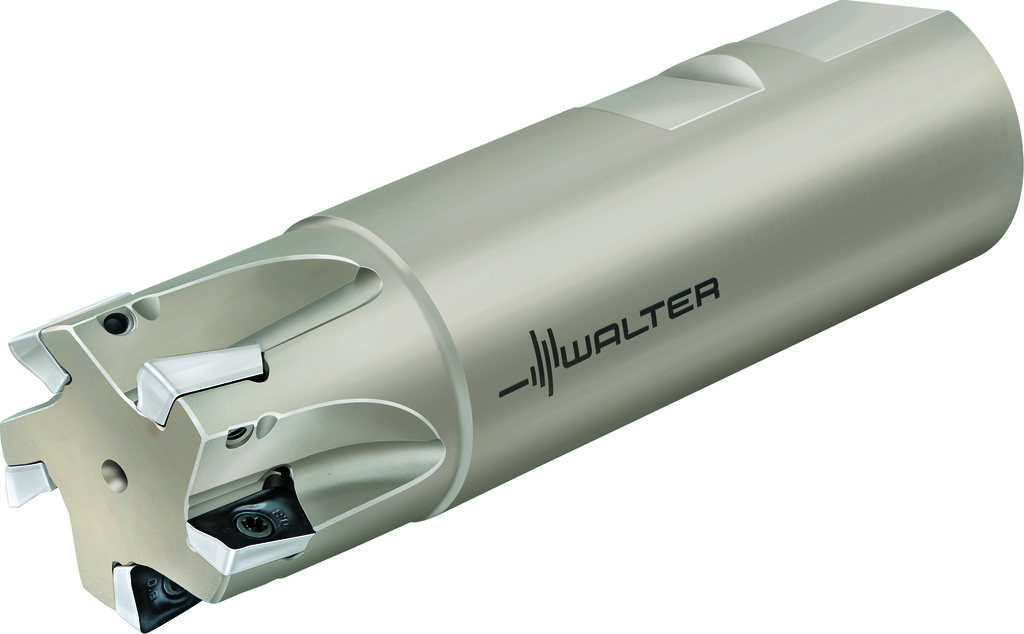

Shoulder milling cutters F4042R
• ScrewFit
• κ=90°
• metric
• AD .. 10T3 ..
• Dc=25mm
• Z=4
Shoulder milling cutters F4042R.T22.025.Z04.10

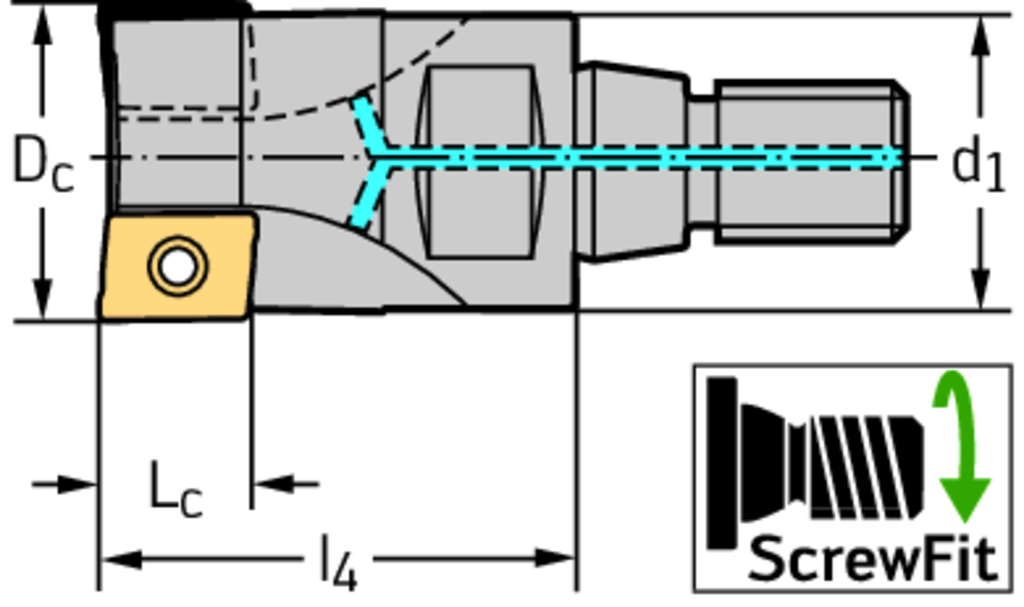

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 25 mm |
| connection diameter | d 1 | T22 mm |
| Maximum projection length | l 4 | 35 mm |
| Cutting edge length | L c | 10 mm |
| Number of teeth | Z | 4 |
| weight of item | 0,12 kg | |
| Number of indexable inserts | No. of indexable inserts | 4 |
| Maximum admissable speed | n max [rpm] | 31700 |
| Maximum ramping angle | E | 1,5 Deg |
