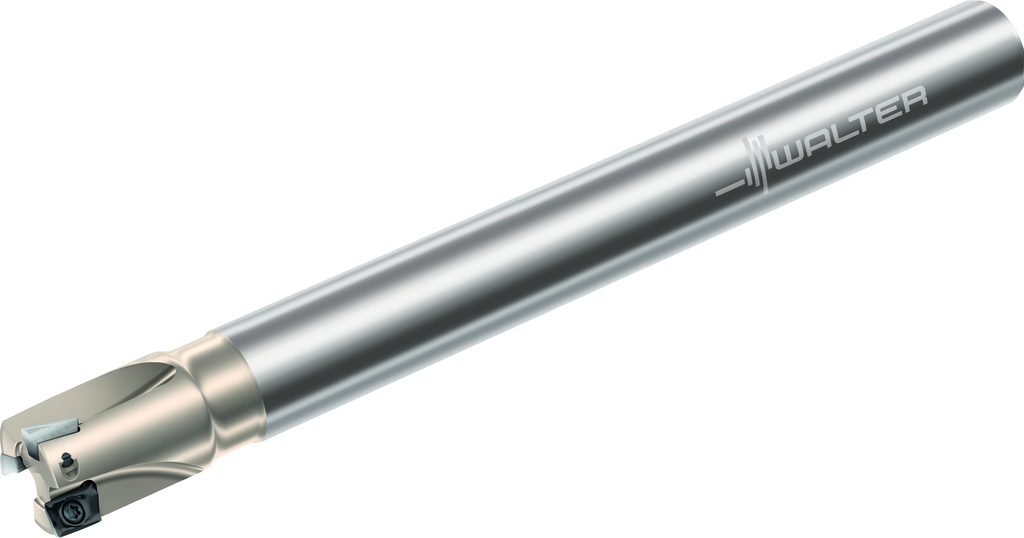

Shoulder milling cutters F4042
• DIN 1835 B shank
• κ=90°
• inch
• AD .. 0803 ..
• Dc=32mm
• Z=5
Shoulder milling cutters F4042.UW31.031.Z05.08

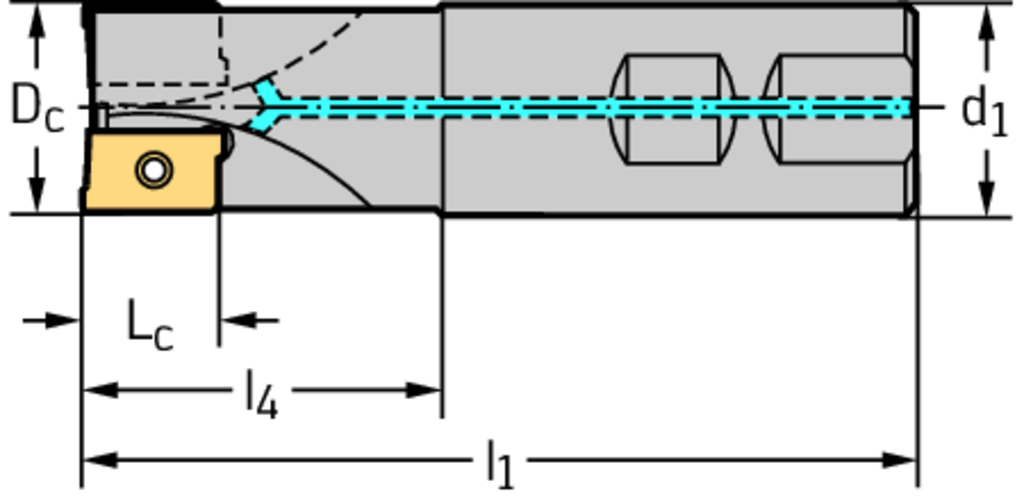

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 1,25 inch |
| connection diameter | d 1 | 1 1/4 inch |
| Maximum projection length | l 4 | 1,181 inch |
| Overall length | l 1 | 3,462 inch |
| Cutting edge length | L c | 0,315 inch |
| Number of teeth | Z | 5 |
| weight of item | 0,5 lbs | |
| Number of indexable inserts | No. of indexable inserts | 5 |
Други размери
