HSS-E PM machine taps TC120
• Supreme
• ≤3xD
• M/6HX
• DIN 371
• right hand flute 45°
• Suitable for blind hole
• WW60AG
• M 10
• P=1,5mm
HSS-E PM machine taps TC120-M10-C1-WW60AG

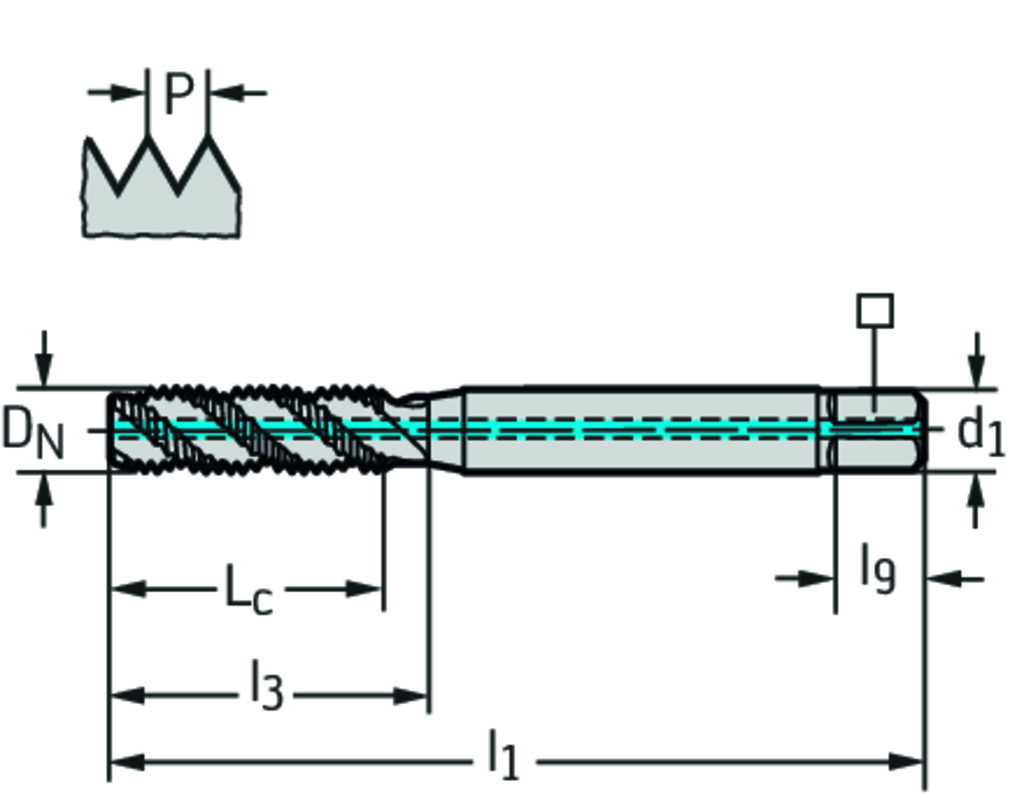

| Описание | Символ | Стойност |
| Thread size | D N | M 10 |
| Thread pitch | P | 1,5 mm |
| Functional length | l 1 | 100 mm |
| Cutting edge length | L c | 33 mm |
| Useable length | l 3 | 39 mm |
| connection diameter | d 1 | 10 mm |
| clamping width | ⃞ | 8 mm |
| Driving square length | l 9 | 11 mm |
| Number of grooves | N | 3 |
