HSS-E PM machine taps TC120
• Supreme
• ≤3xD
• M/6HX
• DIN 376
• right hand flute 45°
• Suitable for blind hole
• WW60AG
• M 16
• P=2mm
HSS-E PM machine taps TC120-M16-L0-WW60AG

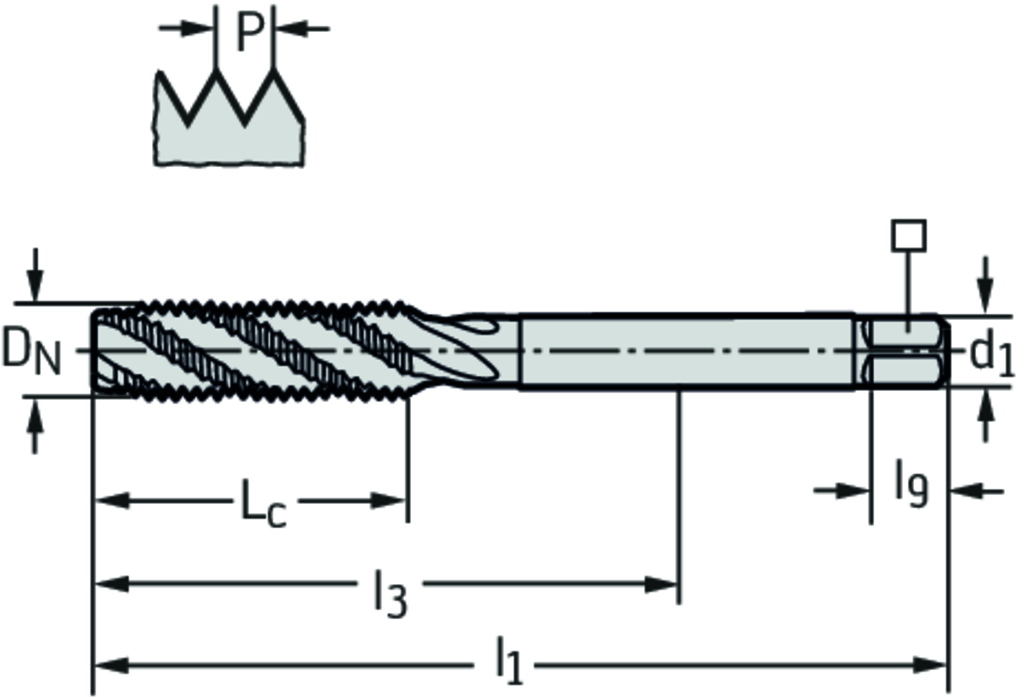

| Описание | Символ | Стойност |
| Thread size | D N | M 16 |
| Thread pitch | P | 2 mm |
| Functional length | l 1 | 120 mm |
| Cutting edge length | L c | 52 mm |
| Useable length | l 3 | 78 mm |
| connection diameter | d 1 | 12 mm |
| clamping width | ⃞ | 9 mm |
| Driving square length | l 9 | 12 mm |
| Number of grooves | N | 4 |
