HSS-E PM machine taps TC120
• Supreme
• ≤3xD
• M/6HX
• DIN 371
• right hand flute 45°
• Suitable for blind hole
• WW60AG
• M 3
• P=0,5mm
HSS-E PM machine taps TC120-M3-C0-WW60AG

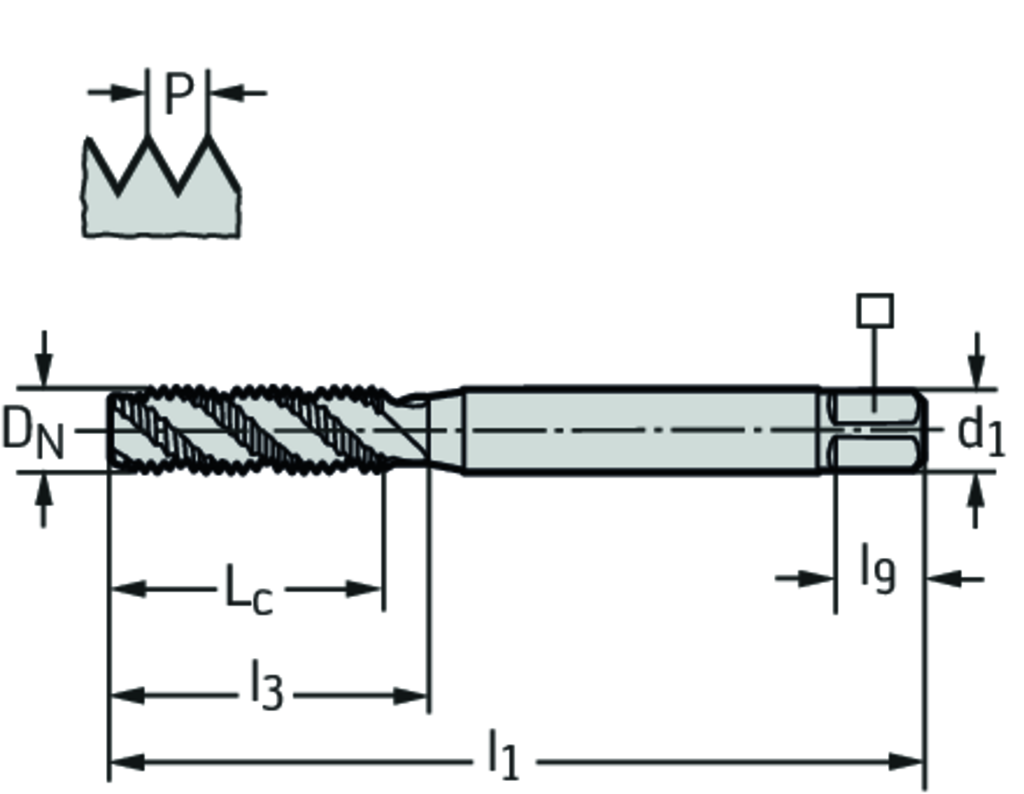

| Описание | Символ | Стойност |
| Thread size | D N | M 3 |
| Thread pitch | P | 0,5 mm |
| Functional length | l 1 | 56 mm |
| Cutting edge length | L c | 10 mm |
| Useable length | l 3 | 18 mm |
| connection diameter | d 1 | 3,5 mm |
| clamping width | ⃞ | 2,7 mm |
| Driving square length | l 9 | 6 mm |
| Number of grooves | N | 3 |
