Synchronous thread cutting adaptor AB035-H
• metric
• d1=63mm
• d11=40,8mm
• for thread diameter size=M16-M30
Synchronous thread cutting adaptor AB035-H AB035-H63-ER40-160

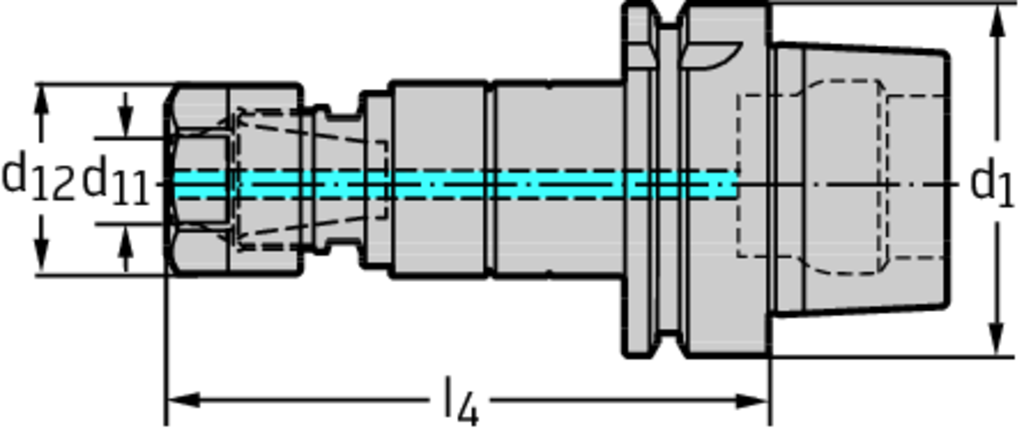

| Описание | Символ | Стойност |
| Connection size code | d 1 | HSK-A63 |
| connection diameter | d 11 | M16-M30 mm |
| Body diameter | d 12 | 62,7 mm |
| Maximum projection length | l 4 | 159,9 mm |
| weight of item | 3,8 kg |
Други размери
