Synchronous thread cutting adaptor AB035-S
• metric
• d1=
• d11=20,8mm
• for thread diameter size=M4-M12
Synchronous thread cutting adaptor AB035-S AB035-S50-ER20-106

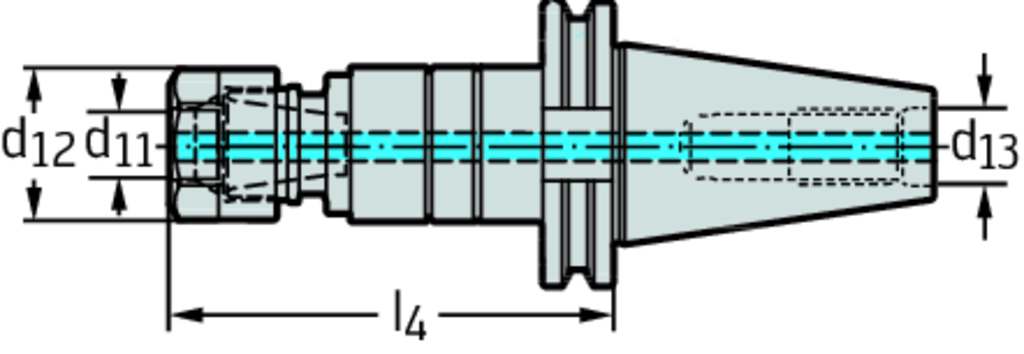

| Описание | Символ | Стойност |
| Connection size code | d 1 | SK50 |
| connection diameter | d 11 | M4-M12 mm |
| Body diameter | d 12 | 33,7 mm |
| Pull stud, thread size | d 13 | M24 mm |
| Maximum projection length | l 4 | 106,2 mm |
| weight of item | 3,1 kg |
