ER collet chuck with internal cooling AK300M
• metric
• For ER collets in accordance with DIN 6499/ISO15488
• d1=32
• d11=ER16
ER collet chuck with internal cooling AK300M AK300M.0.32.055.10

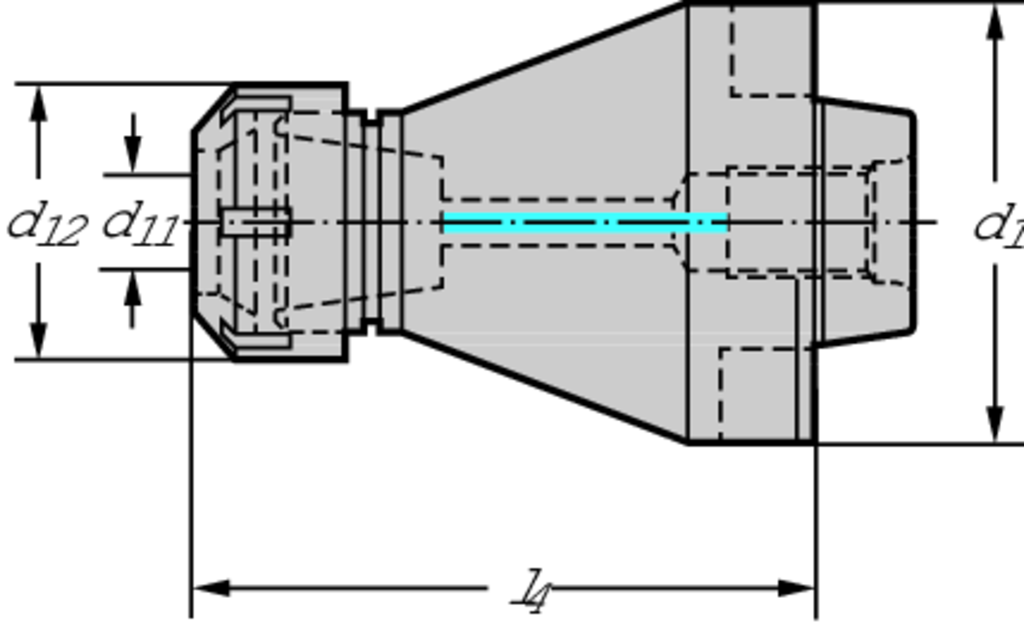

| Описание | Символ | Стойност |
| Connection size code | d 1 | NCT 32 |
| connection diameter | d 11 | 1-10 mm |
| Body diameter | d 12 | 28 mm |
| Maximum projection length | l 4 | 55 mm |
| weight of item | 0,2 kg |
