ASME B5.50 ER collet chuck AB009.K
• metric
• For ER collets in accordance with DIN 6499/ISO15488
• d1=40
• d11=ER16
ASME B5.50 ER collet chuck AB009.K AB009.K40-ER16-105

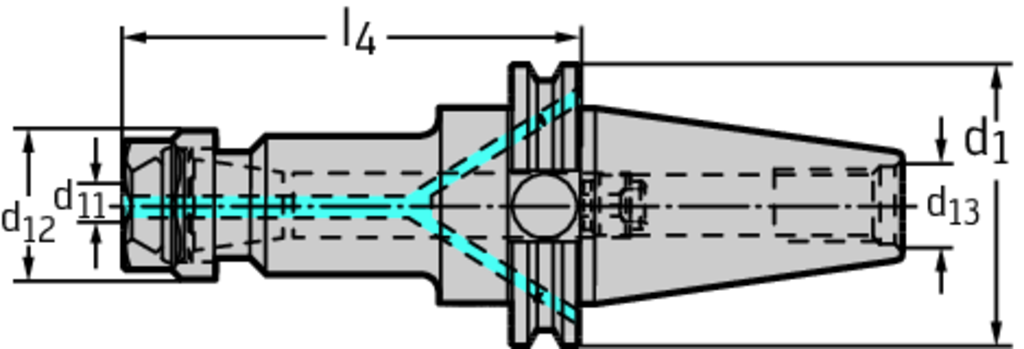

| Описание | Символ | Стойност |
| Connection size code | d 1 | CAT40 |
| connection diameter | d 11 | 1-10 |
| Body diameter | d 12 | 1,092 inch |
| Maximum projection length | l 4 | 4,12 inch |
| weight of item | 1,25 lbs | |
| Pull stud, thread size | d 13 | 5/8"-11 |
Други размери
