DIN 69871 hydraulic expansion chuck AK182.S
• metric
• For tools with shank in accordance with DIN 1835 Form A
• ISO 7388-1
• d1=50
• d11=32
DIN 69871 hydraulic expansion chuck AK182.S AK182.S50.081.32

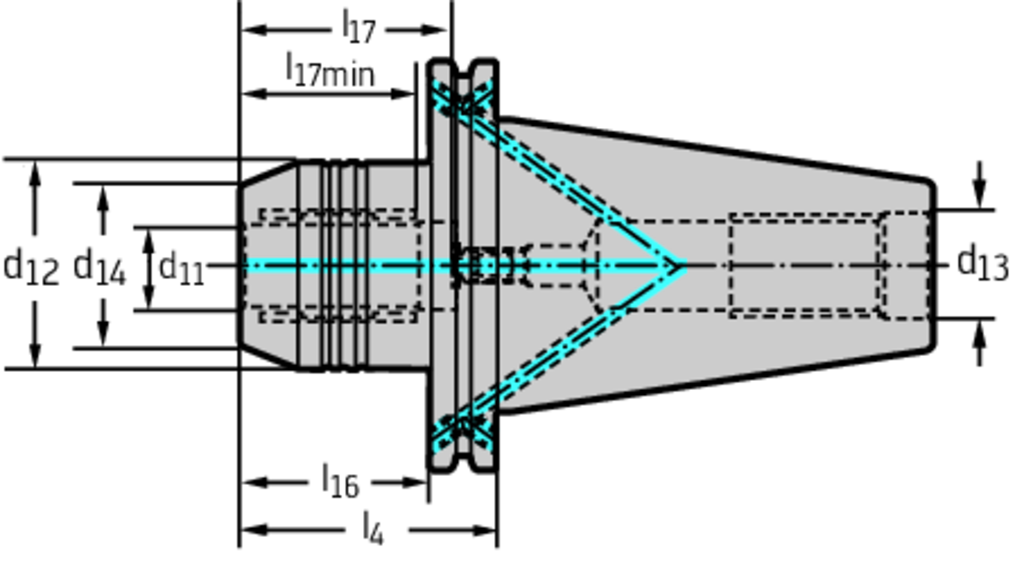

| Описание | Символ | Стойност |
| Connection size code | d 1 | SK50 |
| connection diameter | d 14 | 58,5 mm |
| Body diameter | d 12 | 72 mm |
| Maximum projection length | l 4 | 81 mm |
| Useable length | l 16 | 61,95 mm |
| Clamping diameter depth | l 17 | 61 mm |
| Min. clamping diameter depth | l 17min | 51 mm |
| Pull stud, thread size | d 13 | M24 |
| weight of item | 4,1 kg |
