ASME B5.50 Weldon shank adaptor AB044.K
• metric
• For tools with shank in accordance with DIN 1835 Form B
• d1=50
• d11=3/4
ASME B5.50 Weldon shank adaptor AB044.K AB044.K50-W19-095

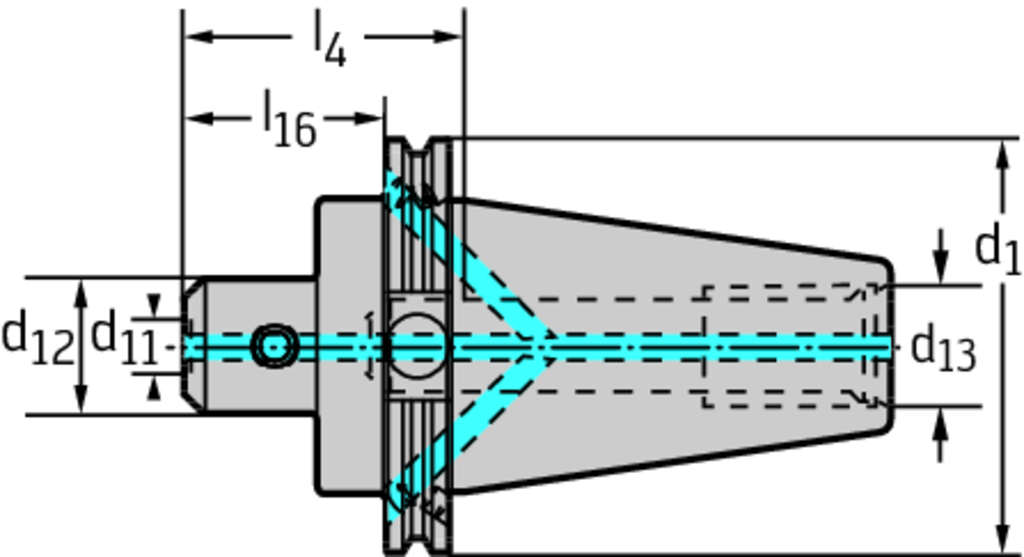

| Описание | Символ | Стойност |
| Connection size code | d 1 | CAT50 |
| connection diameter | d 11 | 0,75 inch |
| Body diameter | d 12 | 1,15 inch |
| Functional length | l 4 | 3,75 inch |
| Useable length | l 16 | 2,37 inch |
| Pull stud, thread size | d 13 | 1"-8 |
| weight of item | 3,63 lbs |
