Shoulder milling cutters F4042R
• Parallel shank
• κ=90°
• metric
• AD .. 10T3 ..
• Dc=25mm
• Z=3
Shoulder milling cutters F4042R.Z25.025.Z03.10

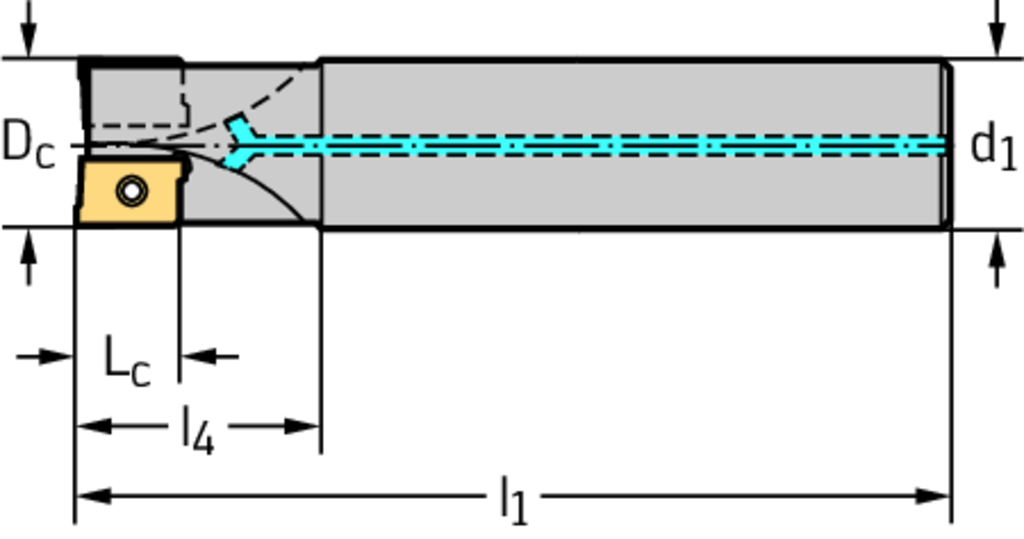

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 25 mm |
| connection diameter | d 1 | 25 mm |
| Maximum projection length | l 4 | 32 mm |
| Overall length | l 1 | 200 mm |
| Cutting edge length | L c | 10 mm |
| Number of teeth | Z | 3 |
| weight of item | 0,7 kg | |
| Number of indexable inserts | No. of indexable inserts | 3 |
