Shoulder milling cutters M4132
• Parallel bore DIN 138 transverse keyway
• κ=90°
• inch
• SD .. 09T3 ..
• Dc=76mm
• Z=8
Shoulder milling cutters M4132.076-B26-08-09

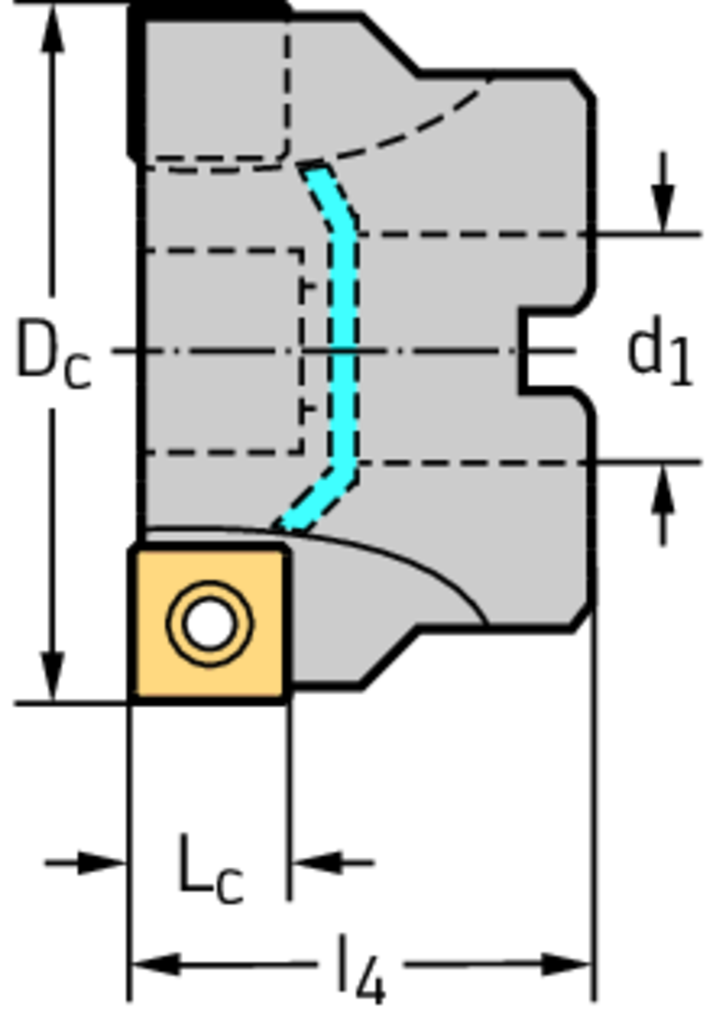

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 3 inch |
| connection diameter | d 1 | 1 inch |
| Overall length | l 1 | 1,969 inch |
| Maximum projection length | l 4 | 1,969 inch |
| Cutting edge length | L c | 0,331 inch |
| Number of teeth | Z | 8 |
| weight of item | 1,1 lbs | |
| Number of indexable inserts | No. of indexable inserts | 8 |
