Shoulder milling cutters M4132
• ScrewFit
• κ=90°
• metric
• SD .. 09T3 ..
• Dc=50mm
• Z=6

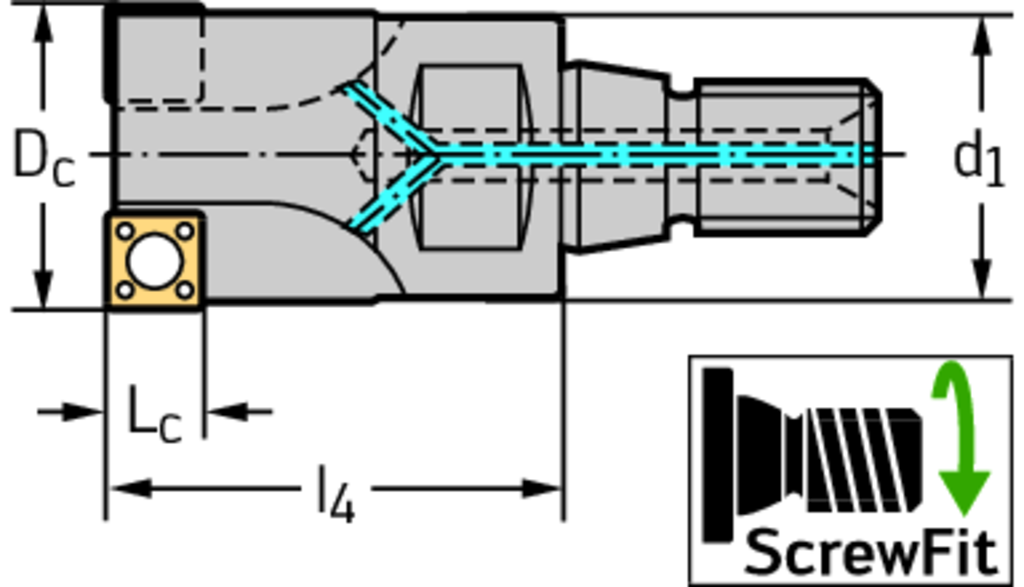

Shoulder milling cutters M4132-050-T45-06-09
| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 50 mm |
| connection diameter | d 1 | T45 mm |
| Maximum projection length | l 4 | 40 mm |
| Cutting edge length | L c | 8,4 mm |
| Number of teeth | Z | 6 |
| weight of item | 0,37 kg | |
| Number of indexable inserts | No. of indexable inserts | 6 |
| Maximum admissable speed | n max [rpm] | 26900 |
| Maximum ramping angle | E | 0 Deg |
