Shoulder milling cutters M4132
• DIN 1835 B shank
• κ=90°
• metric
• SD .. 09T3 ..
• Dc=32mm
• Z=2
Shoulder milling cutters M4132-032-W32-02-09

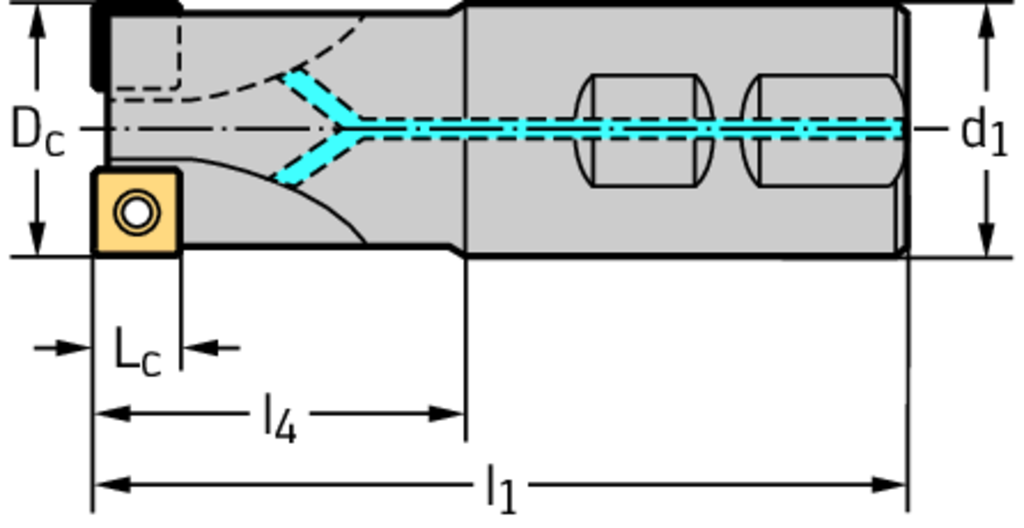

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 32 mm |
| connection diameter | d 1 | 32 mm |
| Overall length | l 1 | 110 mm |
| Maximum projection length | l 4 | 49 mm |
| Cutting edge length | L c | 8,4 mm |
| Number of teeth | Z | 2 |
| weight of item | 0,6 kg | |
| Number of indexable inserts | No. of indexable inserts | 2 |
