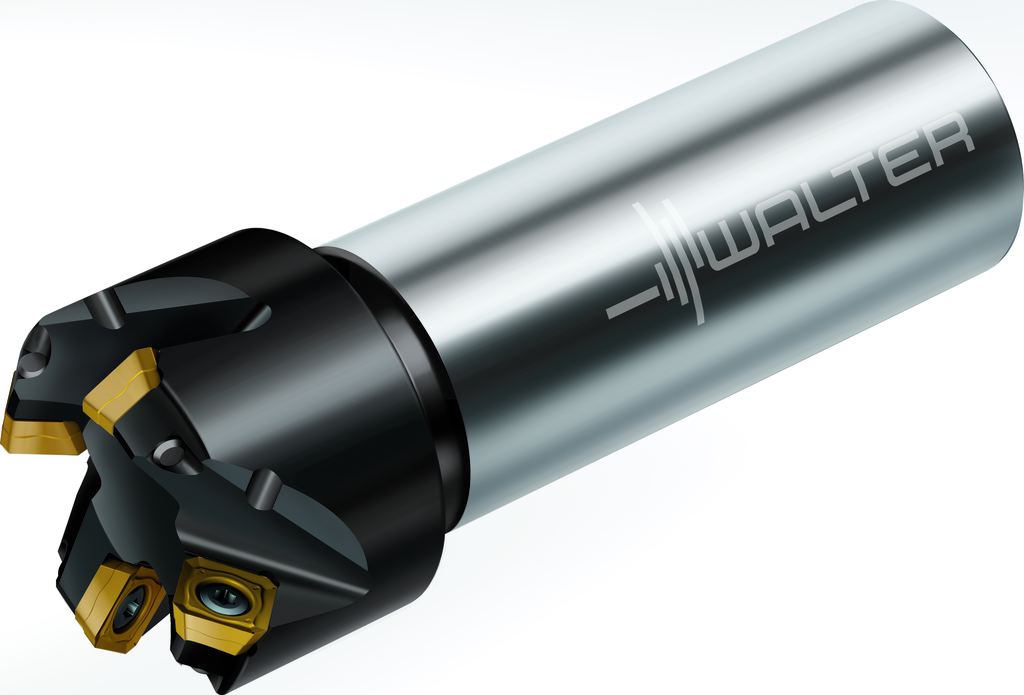

Face milling cutters M4003
• Parallel bore DIN 138 transverse keyway
• κ=45°
• metric
• SD .. 09T3 ..
• Dc=63mm
• Z=10
Face milling cutters M4003-063-B22-10-4.5

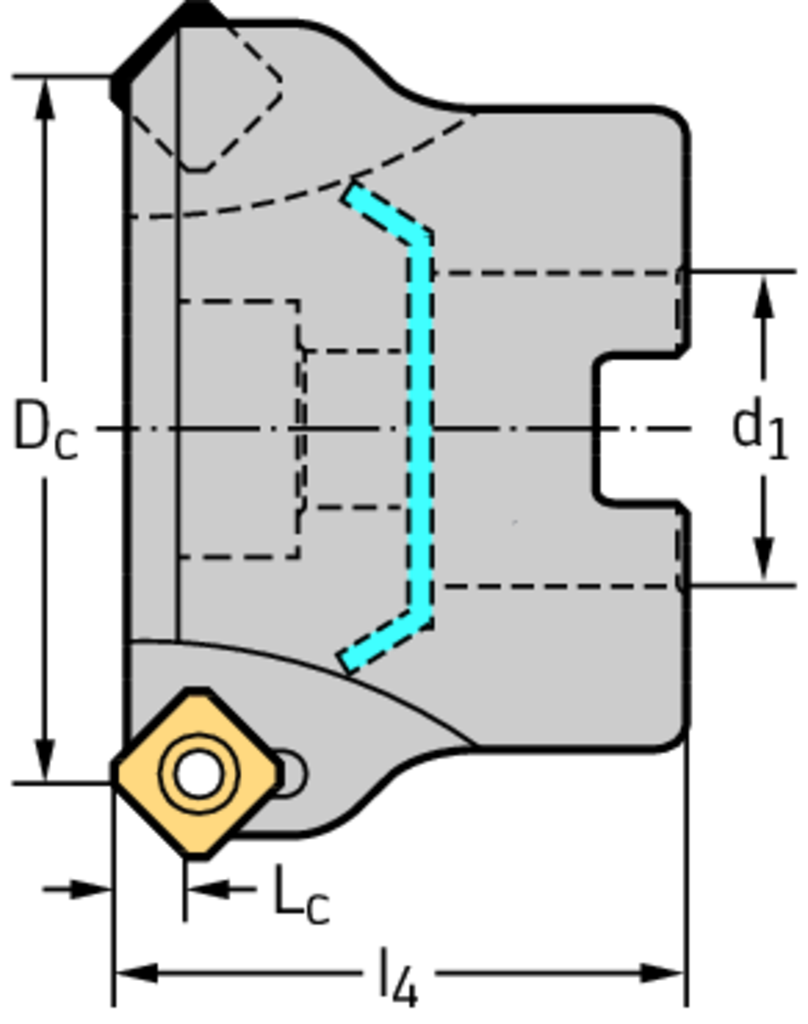

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 63 mm |
| Shank diameter | d 1 | 22 mm |
| Functional length | l 4 | 40 mm |
| Cutting edge length | L c | 4,5 mm |
| Number of teeth | Z | 10 |
| weight of item | 0,7 kg | |
| Number of indexable inserts | No. of indexable inserts | 10 |
