Фреза F4153.UBN31.127.Z06.10R F4153.UBN31.127.Z06.10R

Slotting cutters for ‌slot milling F4153

• Parallel bore DIN 138 transverse keyway

• inch

• Dc=127mm

• SB=9,5mm

Slotting cutters for ‌slot milling F4153.UBN31.127.Z06.10R

Категория: Фрези Walter BLAXX/Xtra tec

Код: 5677497

Производител: Walter

На склад: Не е налично

Направи запитване

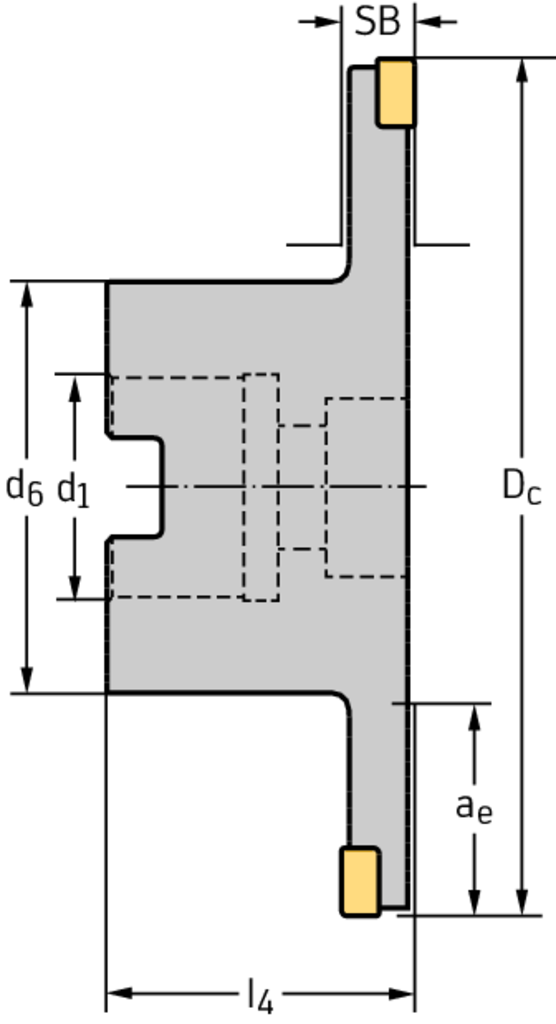

Описание	Символ	Стойност
Cutting edge diameter	D c	5 inch
connection diameter	d 1	1,25 inch
Hub diameter	d 6	2,25 inch
Cutting width	SB	0,375 inch
Maximum depth of cut	a e	1,28 inch
Number of teeth	Z	6
	weight of item	1,3 lbs
Number of indexable inserts	No. of indexable inserts	6
