Slotting cutters for slot milling F4253
• Parallel bore DIN 138 transverse keyway
• inch
• Dc=102mm
• SB=12,7mm
Slotting cutters for slot milling F4253.UBN26.102.Z05.13R

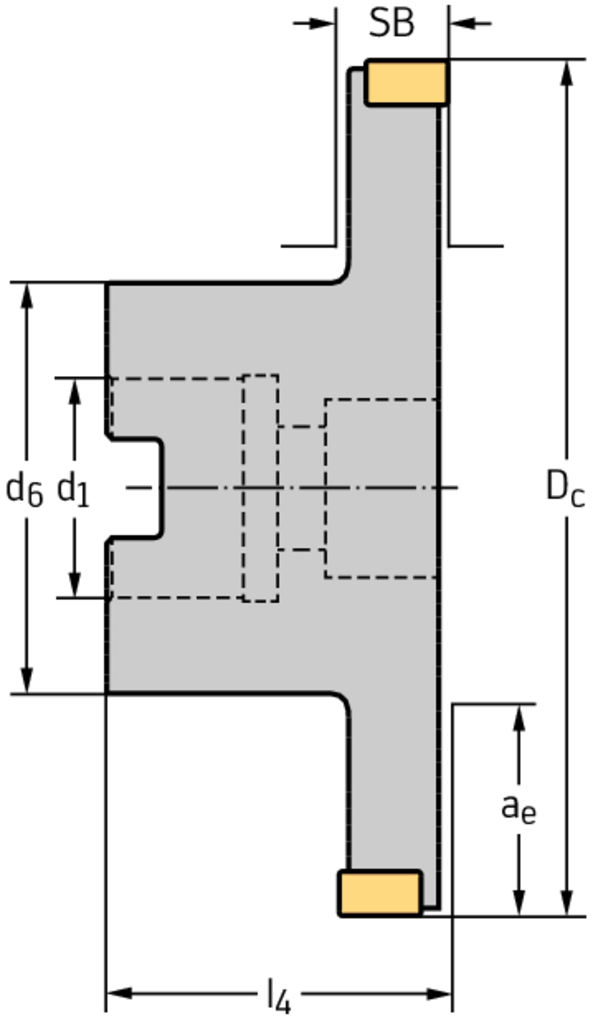

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 4 inch |
| connection diameter | d 1 | 1 inch |
| Hub diameter | d 6 | 1,875 inch |
| Functional length | l 4 | 2 inch |
| Cutting width | SB | 0,5 inch |
| Maximum depth of cut | a e | 0,945 inch |
| Number of teeth | Z | 5 |
| weight of item | 1,1 lbs | |
| Number of indexable inserts | No. of indexable inserts | 5 |
