Turning tools – Rigid clamping C...-DCLN
• Walter Turn
• metric
• Walter CaptoTM ISO 26623
• κ=95°
• Left
• C4
• rhombic insert
• CN .. 1204 ..

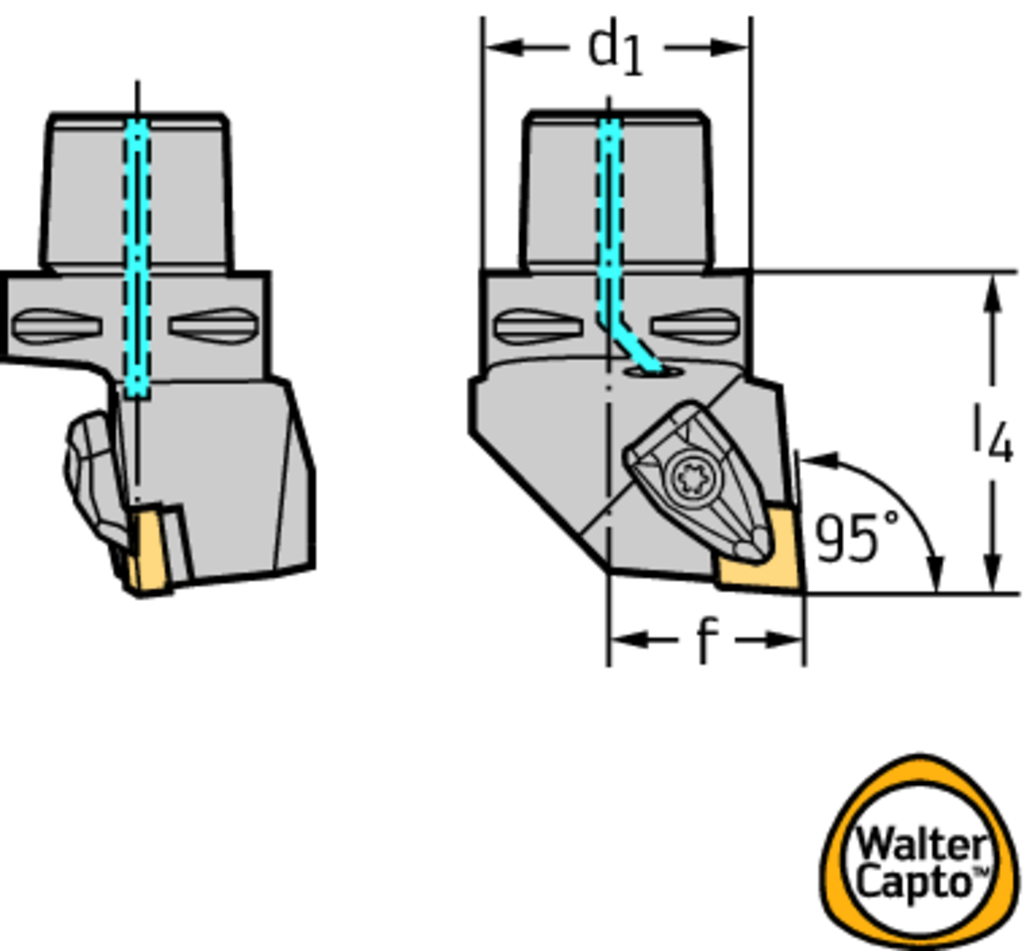

Turning tools – Rigid clamping C... C4-DCLNL-27050-12
| Описание | Символ | Стойност |
| Connection size code | D 1 | C4 |
| Functional width | f | 27 mm |
| Functional length | l 4 | 50 mm |
| Minimum diameter | D min | 110 mm |
| Minimum hole diameter | D min2 | 140 mm |
| Orthogonal rake angle | γ | -6 Deg |
| Inclination angle | λ s | -6 Deg |
Други размери
