Finishing inserts ODHX ...-A57
• clearance angle major=15°
• WAK15
• Tigertec
• Corner radius=1,8mm
• wiper edge length=6mm
Finishing inserts ODHX0605ZZN-A57 WAK15

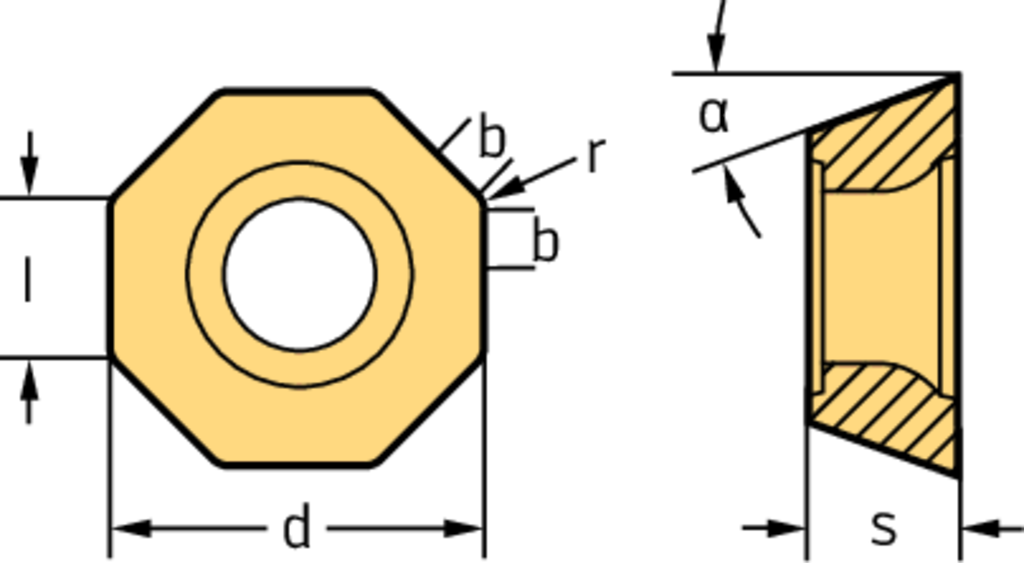

| Описание | Символ | Стойност |
| Indexable insert tolerance class | Tolerance class | H |
| Number of cutting edges | Number of cutting edges | 8 |
| Diameter of inscribed circle | d | 15,88 mm |
| Insert thickness | s | 5,56 mm |
| Clearance angle major | α | 15 Deg |
| Wiper cutting edge length | b | 6 mm |
