Grooving and recessing – cutting inserts DX ...-UF7
• neutral
• WSM33S
• Tigertec Silver
• s=3mm
• r=0,2mm

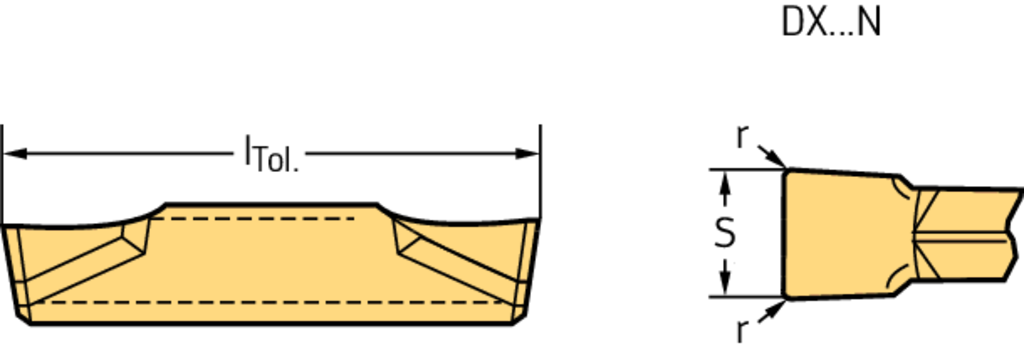

Grooving and recessing – cutting inserts DX18-3E300N02-UF7 WSM33S
| Описание | Символ | Стойност |
| Insert width | s | 3 mm |
| Corner radius | r | 0,2 mm |
| Cutting edge length | l | 18 mm |
| Feed per revolution | f | 0,07 - 0,24 mm |
| Depth of cut | a p | 0,4 - 1,5 mm |
| Tolerance cutting width | S Tol | ±0,05 mm |
| Length tolerance | l Tol | ±0,15 mm |
Други размери
