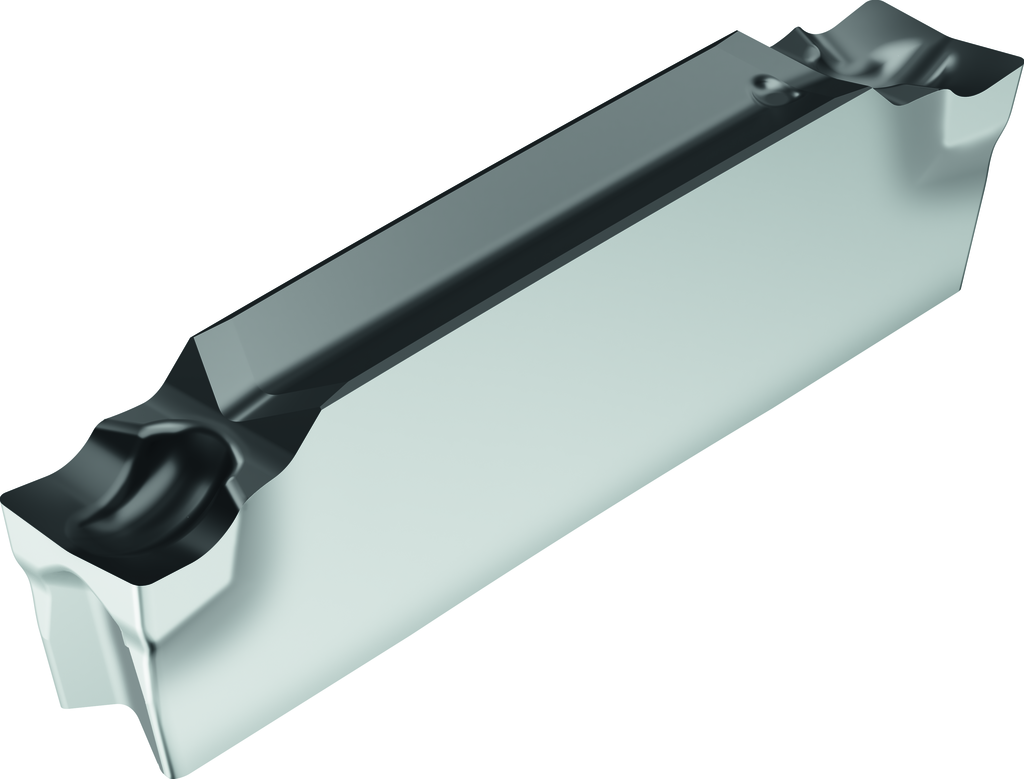

Grooving and parting off – cutting inserts DX ...-CE4
• neutral
• WSM33S
• Tigertec Silver
• s=2mm
• r=0,2mm
Grooving and parting off – cutting inserts DX18-2E200N02-CE4 WSM33S

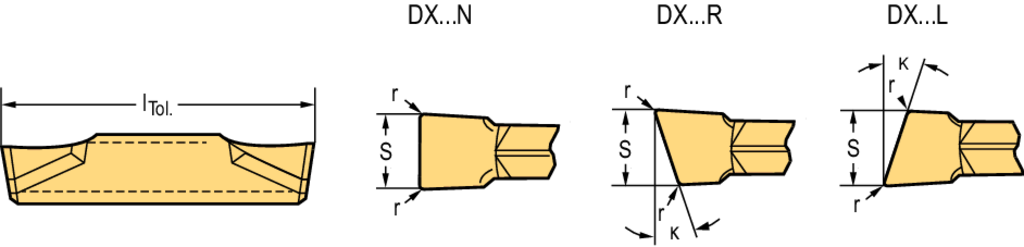

| Описание | Символ | Стойност |
| Hand | N | |
| Insert width | s | 2 mm |
| Corner radius | r | 0,2 mm |
| Cutting edge length | l | 18 mm |
| Feed per revolution | f | 0,06 - 0,17 mm |
| Tolerance cutting width | S Tol | ±0,05 mm |
| Length tolerance | l Tol | ±0,15 mm |
