Indexable insert drills D3120.04
• 4xD
• Parallel shank with flat
• inch
• Dc=38,1mm
Indexable insert drills D3120.04-38.10F38-P25

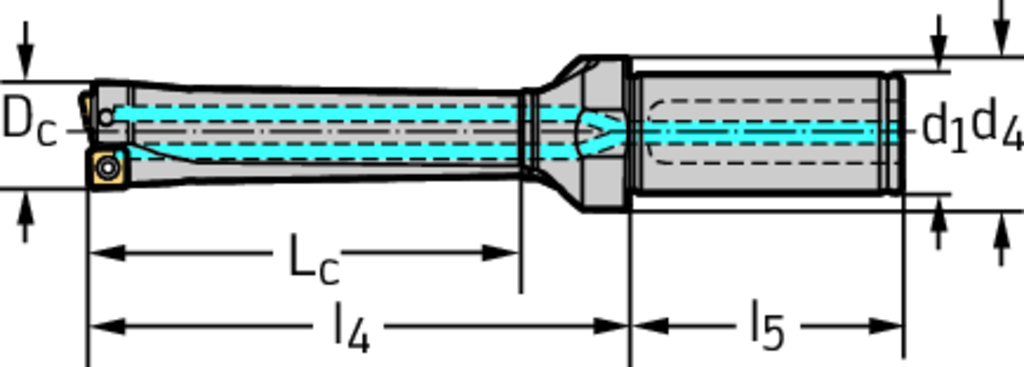

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 1,5 inch |
| Cutting edge length | L c | 6 inch |
| Maximum projection length | l 4 | 7,626 inch |
| Clamping length | l 5 | 2,688 inch |
| connection diameter | d 1 | 1,5 inch |
| Flange diameter | d 4 | 1,929 inch |
| weight of item | 1,59 lbs | |
| Number of indexable inserts | No. of indexable inserts | 2 |
