Indexable insert drills D3120-02
• 2xD
• Parallel shank with flat
• metric
• Dc=34mm
Indexable insert drills D3120-02 D3120-02-34.00F32-P24

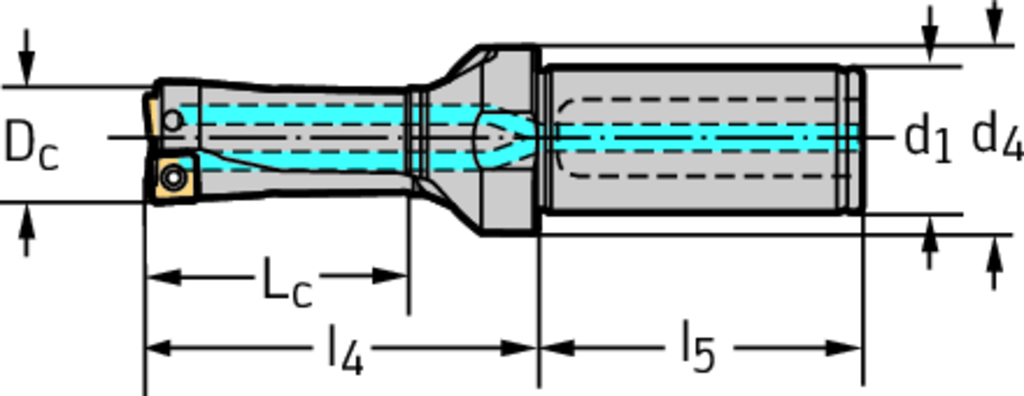

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 34 mm |
| Cutting edge length | L c | 68 mm |
| Maximum projection length | l 4 | 100 mm |
| Clamping length | l 5 | 60 mm |
| connection diameter | d 1 | 32 mm |
| Flange diameter | d 4 | 40 mm |
| weight of item | 0,78 kg | |
| Number of indexable inserts | No. of indexable inserts | 2 |
