Replaceable head – screw clamping Q...-SVUB
• Walter Turn
• metric
• QuadFit
• Right
• rhombic insert
• VB .. 1604 ..
Replaceable head – screw clamping Q...-SVUB Q50-SVUBR-32032-16

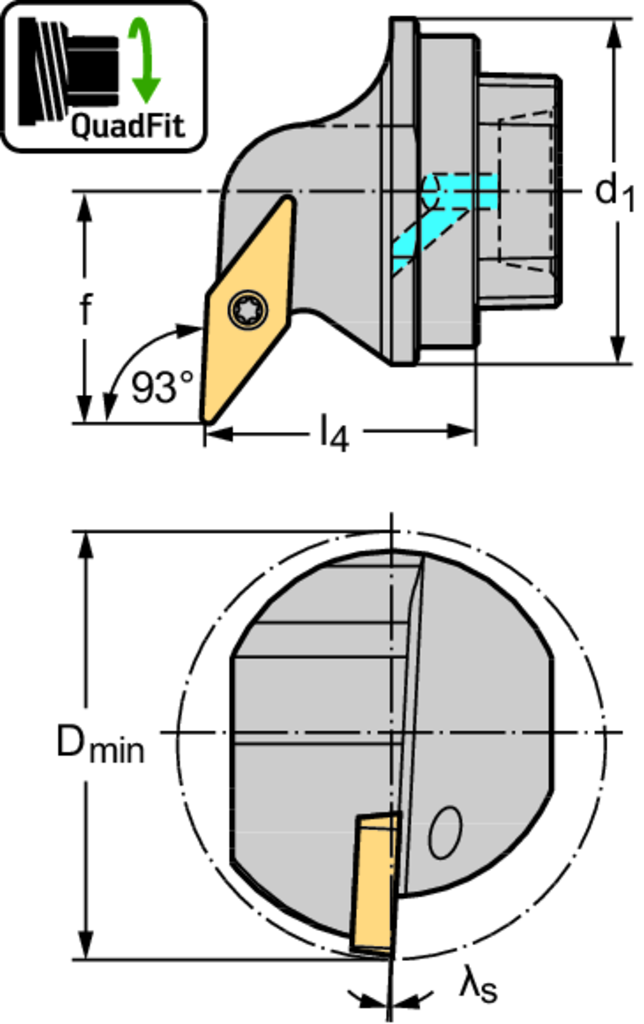

| Описание | Символ | Стойност |
| Connection size code | d 1 | Q50 |
| Minimum hole diameter | D min | 63 mm |
| Functional width | f | 31,9 mm |
| Functional length | l 4 | 32 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | -3 Deg |
