Replaceable head – screw clamping Q...-SDXC
• Walter Turn
• metric
• QuadFit
• Left
• rhombic insert
• DC .. 11T3 ..
Replaceable head – screw clamping Q...-SDXC Q50-SDXCL-32025-11

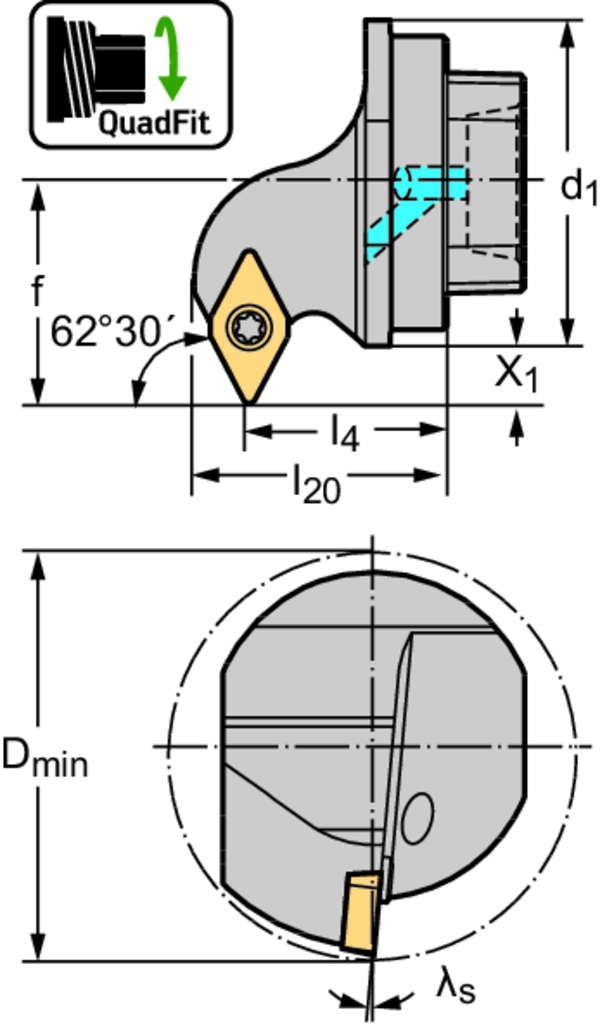

| Описание | Символ | Стойност |
| Connection size code | d 1 | Q50 |
| Minimum hole diameter | D min | 63 mm |
| Functional width | f | 31,9 mm |
| Functional length | l 4 | 25 mm |
| Overall length | l 20 | 42,5 mm |
| X | X 1 | 6,9 mm |
| Orthogonal rake angle | γ | 0 Deg |
| Inclination angle | λ s | -5 Deg |
Други размери
